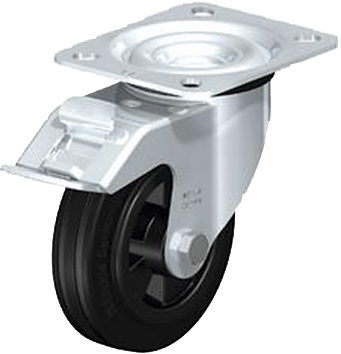

Castor with Fitted Flange
Sturdy castors with fitted flange.
Run very smoothly and are a particularly good choice for workshops.
Sold as lockable steering castor and fixed castor.
Lockable steering castor: locks to prevent the wheel from rolling and turning
Material: Wheel: Solid rubber; rim: polypropylene;
Housing: Galvanised steel sheet; transparent chromate coating
Run very smoothly and are a particularly good choice for workshops.
Sold as lockable steering castor and fixed castor.
Lockable steering castor: locks to prevent the wheel from rolling and turning
Material: Wheel: Solid rubber; rim: polypropylene;
Housing: Galvanised steel sheet; transparent chromate coating
Ladda ner PDF (all data)
Generating PDF
+
Lägg till i PDF-katalog
Product Information
System: 40 - Slot 8; 30 - Slot 6; 20 - Slot 5
| Designation | Select all | Lead Time * | Description | A | B | D | H | ESD | b | d | F (N) | a | T2 | Al | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
/storage/E4876A3AD76D1EB95D774AB3874CFEBBCB0CC352039AF700AEF635C9DF2A9536/647863ea993640e49b7a2ef3a19ae666/stp/media/b860bf07df2e46479953390087db0cd7/CAD_PZ5099_CastorFittedFlange_Rollco.stp | 2 | Steering castor | 100 | 85 | 100 | 125 | - | 60 | 9 | 700 | 80 | 30 | 36 |
|
||
|
|
/storage/114DFE59F4E7132614D2CC83BC41F5B60E59C8BD51A78FC8473326E6ED2CF9F0/2547e92a5b0843e99d65f9656fe20830/stp/media/cb589d2b71b14cb19b0f7ac261cf7b8c/CAD_PZ5100_CastorFittedFlange_Rollco.stp | 2 | Steering castor | 100 | 85 | 125 | 150 | Yes | 60 | 9 | 1000 | 80 | 37.5 | 40 |
|
||
|
|
/storage/906327FB46AC2E5DB70CB08325CAA4D7C75D3C1541DED49944B1264C6D9E645B/530c2214858140a9b07eb7515fee8046/stp/media/0fd7225682354d96a6a9c6d11577157f/CAD_PZ5101_CastorFittedFlange_Rollco.stp | 2 | Fixed castor | - | - | 75 | 98 | - | - | 11 | 750 | - | 25 | - |
|
||
|
|
/storage/A94A25BBDA710A925C0DA9DB8C12A96093E6A77B6428FD942636F2D2A023FEDF/2afe59d8c0484af3ad97e73d5834bfea/stp/media/97d0a80cef1e4a7d86da3233e0932d68/CAD_PZ5102_CastorFittedFlange_Rollco.stp | 2 | Fixed castor | - | - | 75 | 98 | - | - | 11 | 750 | - | 25 | - |
|
||
|
|
/storage/0F48DDF781BF281C0E89B47597D954F401DC634A1AB9C623EE0405BB6F42E033/a3bedc271fbb40308988a2c6931311bc/stp/media/9f80effd22e14373bd95cb5a71fe65f8/CAD_PZ5103_CastorFittedFlange_Rollco.stp | 2 | Fixed castor | 100 | 85 | 100 | 125 | - | 60 | 9 | 700 | 80 | 30 | - |
|
||
|
|
/storage/BB8B580969AFB0CA91F29535B2B284071F79D41E078C5411A1DA22DE3FD64162/4436101aaf70436fac5aecb607c91e3e/stp/media/dd28ff564936461c8b951b1a77f49c24/CAD_PZ5104_CastorFittedFlange_Rollco.stp | 2 | Fixed castor | 100 | 85 | 125 | 150 | - | 60 | 9 | 1000 | 80 | 37.5 | - |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
