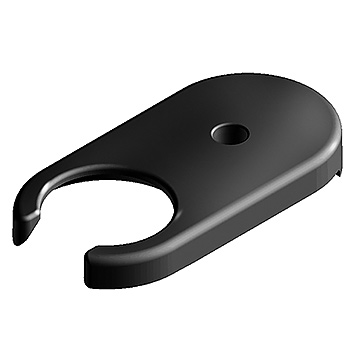

Floor Mount for Trapezoid Base

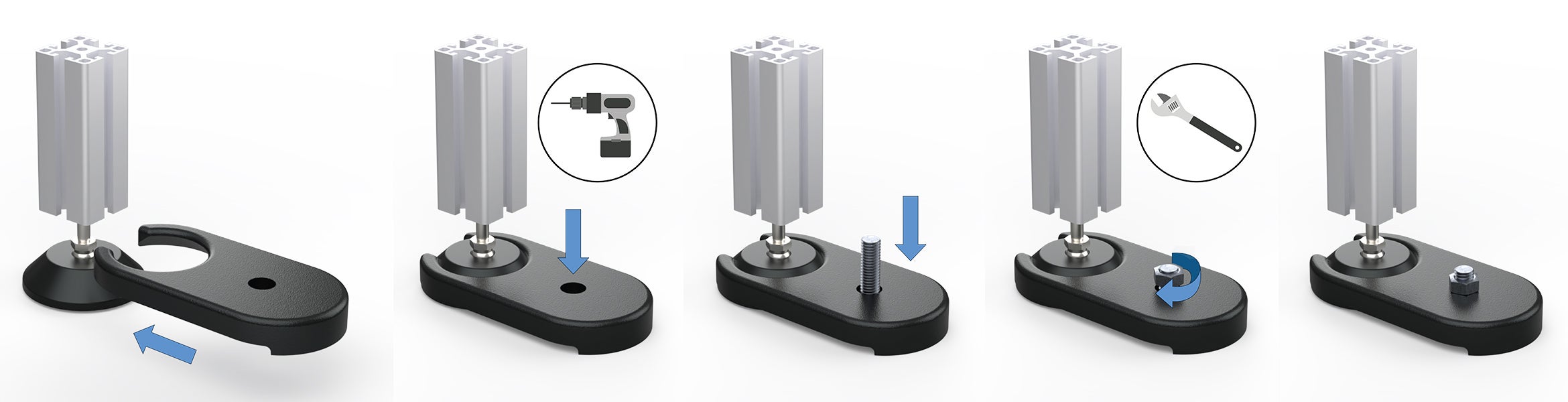

Now or later mounts the trapezoid knuckle foot on the floor.
Material: Die-cast zinc with a black powder coat
Material: Die-cast zinc with a black powder coat
Ladda ner PDF (all data)
Generating PDF
+
Lägg till i PDF-katalog
Product Information
System: 40 - Slot 8; 30 - Slot 6; 20 - Slot 5
| Designation | Select all | Lead Time * | Description | A | B | C | D | H | L | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
/storage/BD6E525336268689CE6C209C8549D0BF165A105193309E60941EB7F61EC3CB2F/d71d7d6066614c8087b1dc5cce4c67a3/stp/media/bcf7d17bac3c439daae304695607174c/CAD_PZ3135_FloorMountTrapezoidBase_Rollco.stp | 2 | Floor mount for trapezoid base 60 | 50 | 56 | 38 | 12 | 18 | 110 |
|
||
|
|
/storage/F3E6D36D20F733092B93B06DD8F5B7C76F1C0C1AD0F14B22E8EDC074A275C1BC/a5104db8c43a41179a83bd0811ab56ef/stp/media/4e4181f4600244ff9699f7a5973c6b7d/CAD_PZ1455_FloorMountTrapezoidBase_Rollco.stp | 2 | Floor mount for trapezoid base 80 | 70 | 76.5 | 38 | 14 | 20 | 150 |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
