Articulated Brackets

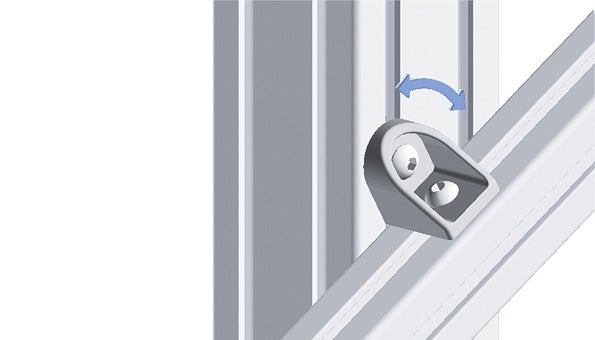

Links two aluminium profiles at various angles.
The bearing bush ensures unrestricted rotation even when mounted.
Material: Die-cast zinc

Note: To install the ESD-ready brackets, use a notched slot nut in order to make a conductive link.
Read more

Product Information

System: 30 - Slot 6; 20 - Slot 5
Type: Angles Brackets and Corners; Fasteners

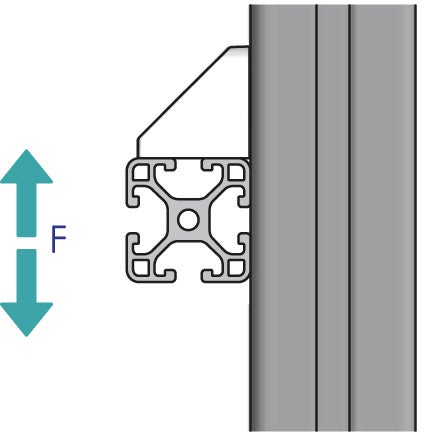

Designation Select all CAD Compare Get quote Lead Time * Description ESD F (N) Drill hole
Get quote 2 Articulated bracket 20, aluminium coloured with M5 slot 5 slot nut, 1× M5 × 8 screw (ISO7380), 1× M5 × 10 flanged fillister head screw, 1× bearing bush - - -
Get quote 2 Articulated bracket 30, uncoated Yes 800 for M6 screw
Get quote 2 Articulated bracket 30, aluminium coloured - 800 for M6 screw

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
