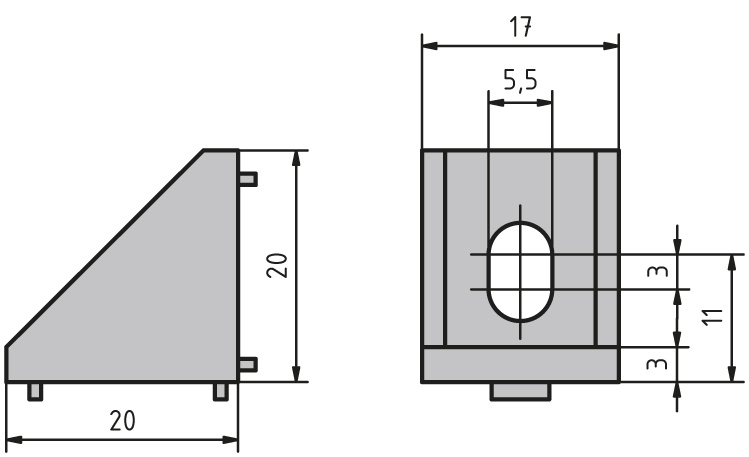

Bracket 20 × 20

STOCK ITEM
Material: Bracket: Die-cast zinc, uncoated and silver powder coated.

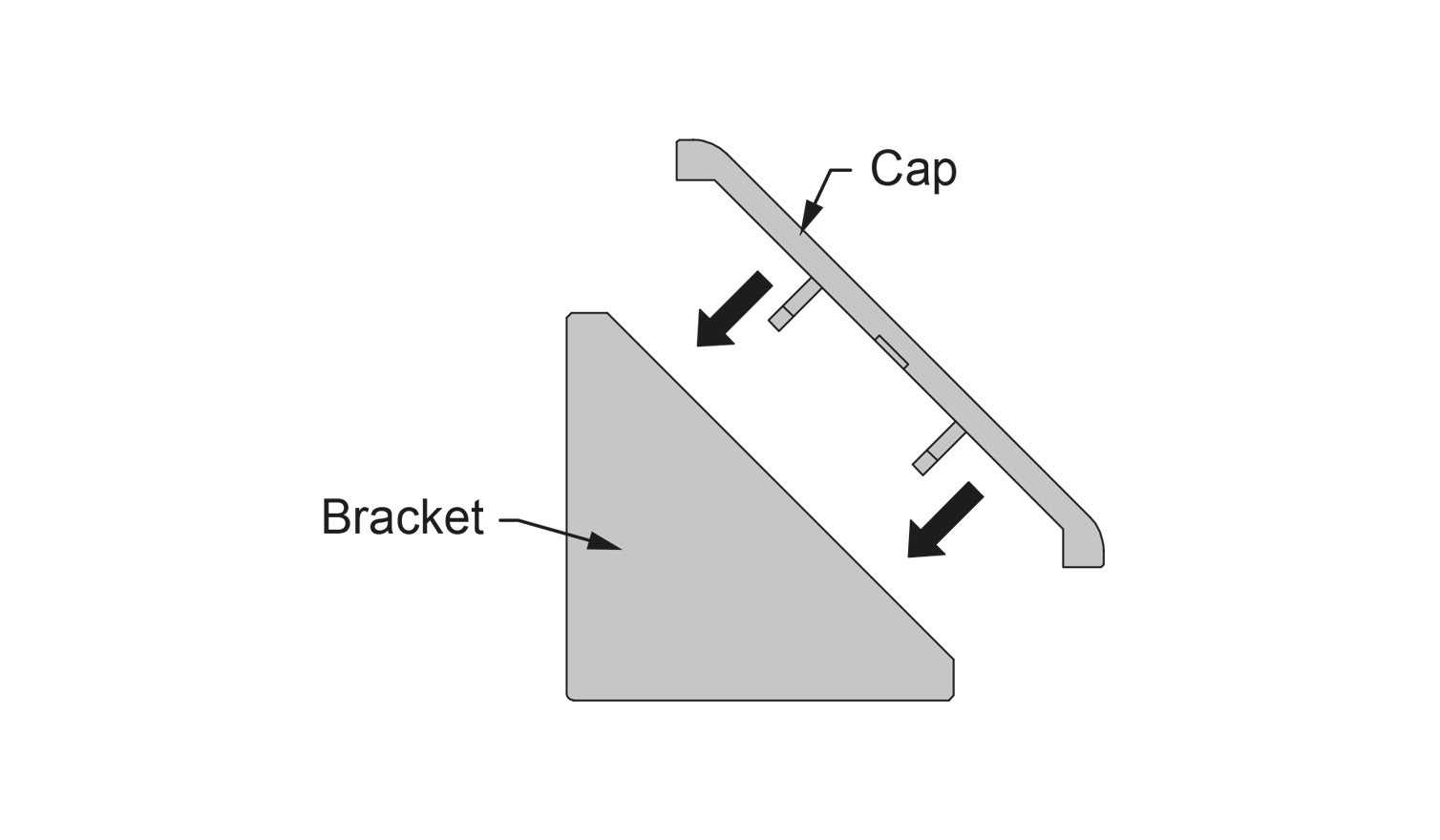

Cap: Black plastic (PA)
Mounting kit: Galvanised steel

Mounting material:
2× M5 slot 5 slot nuts with step
2× M5 × 8 screw (DIN 6912)
Ladda ner PDF (all data) Generating PDF
+ Lägg till i PDF-katalog

Product Information

System: 20 - Slot 5
Designation Select all Lead Time * Description System ESD CAD Compare
/storage/51FFC984AEAB26FE140F038641CA8CA49CA851F067AE4CB637DC0F578AE8A32A/7a734c4ac2fe4836b67b42d8e6959018/STEP/media/a7d72fa52c9746a0a60f3e84dc9c7aa9/CAD_PZ5005_Bracket20x20_Rollco.STEP 2 Bracket 20 × 20 20 - Slot 5 -
Get quote
/storage/9F89EA12CAD91C67AD9C67D45D13576439739C9B7043BD056D39090A24965886/ac382b3f2b4b43ea913ec7f9763bbfa5/STEP/media/c8f8bc8fa40345cd9ced55ceb13c541a/CAD_PZ5006_Bracket20x20_Rollco.STEP 1 Bracket 20 × 20 with mounting material and ABDK 20 - Slot 5 Yes
Get quote
/storage/D70275932E8E42E1EE6B7D77519CD3199B1F5420E89A14FD19AB9CEE115140BF/0ffd16f937024c97b870ca57d5199eba/STEP/media/643b82cf5c2445f5b5db8c3aa41b6e22/CAD_PZ5007_Bracket20x20_Rollco.STEP 2 Bracket 20 × 20 silver powder coated with mounting material and ABDK 20 - Slot 5 -
Get quote
/storage/D06DAB31E97614D176C42A131E04DE8B25F30E9C1833F655417A2CAED6C08859/a1b8fe7965244840bdbfcc9770a1a30b/STEP/media/6c8eb888e1f744b9ac660c8a0e70fb8f/CAD_PA1203_Bracket20x20_Rollco.STEP 2 Cap 20 × 20 20 - Slot 5 -
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
