3560 - 100% Extension

All dimensions in mm.

Product Information

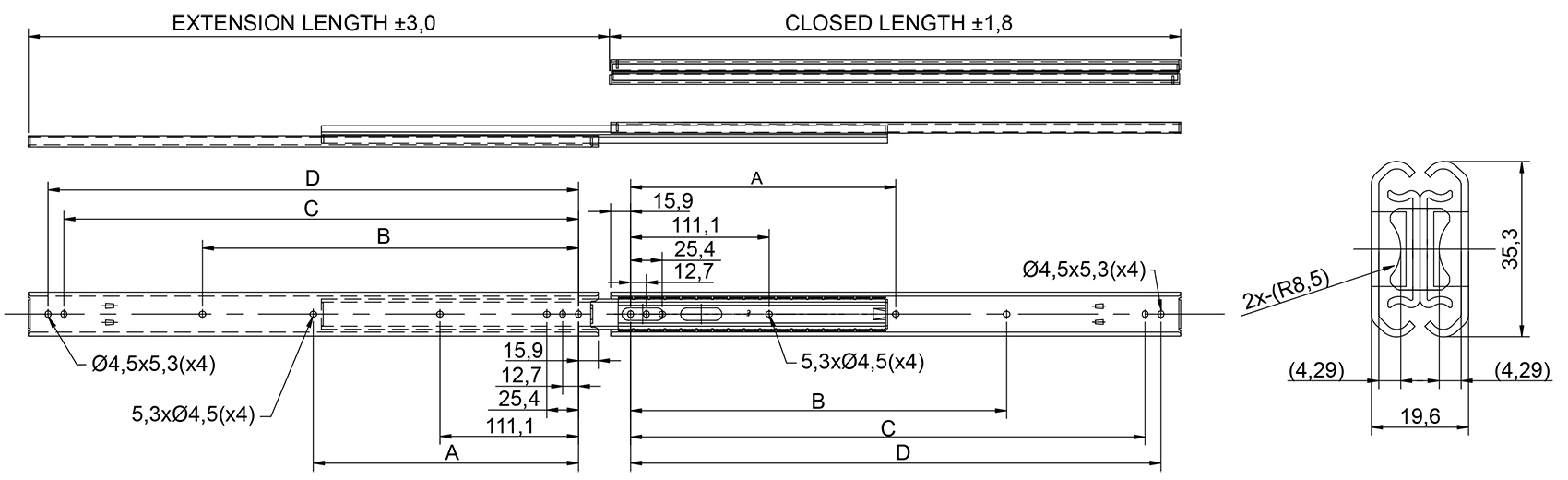

Technical Drawing
Designation Lead Time * Closed Length Extension Length Load / Pair
1 254 264 600 N
1 304,80 315 600 N
1 355,60 366 600 N
1 406,40 416 600 N
1 457,20 467 600 N
1 508 518 600 N
1 558,80 569 500 N
1 609,60 620 450 N
1 660,40 670 400 N
1 711,20 721 320 N

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

Technical Drawing
Designation A B C D
- - 209,60 222,30
- 149,10 260,40 273,10
- 199,90 311,20 323,90
- 250,70 362 374,70
212,60 301,50 412,80 425,50
238 352,30 463,60 476,30
263,40 403,10 514,40 527,10
288,80 453,90 565,20 577,90
314,20 504,70 616 628,70
339,60 555,50 666,80 679,50
