ASN28

Partial extension consisting of a guide rail and a slider. This compact size and simple design allow very high load capacities. The high system rigidity is formed in connection with the adjacent construction.

Special strokes are defined as deviations from standard stroke H. They are each available as multiples of the values in the table below. These values are dependent on the spacing of the ballcage. See Stroke modification in table.

Dimensions in mm
Designation Weight Length Stroke Modification System Load Capacity Radial System Load Capacity Axial Stroke Number of Fixing Holes
2,02 kg/m 130,00 9,50 613 N 429 N 74 2
2,02 kg/m 210,00 9,50 1116 N 781 N 116 3
2,02 kg/m 290,00 9,50 1934 N 1354 N 148 4
2,02 kg/m 370,00 9,50 2445 N 1711 N 190 5
2,02 kg/m 450,00 9,50 2955 N 2069 N 232 6
2,02 kg/m 530,00 9,50 3466 N 2426 N 274 7
2,02 kg/m 610,00 9,50 3976 N 2783 N 316 8
2,02 kg/m 690,00 9,50 4487 N 3141 N 358 9
2,02 kg/m 770,00 9,50 4997 N 3498 N 400 10
2,02 kg/m 850,00 9,50 5828 N 4080 N 433 11
2,02 kg/m 930,00 9,50 6338 N 4436 N 475 12
2,02 kg/m 1 010,00 9,50 6848 N 4793 N 517 13
2,02 kg/m 1 090,00 9,50 7358 N 5150 N 559 14
2,02 kg/m 1 170,00 9,50 7868 N 5507 N 601 15

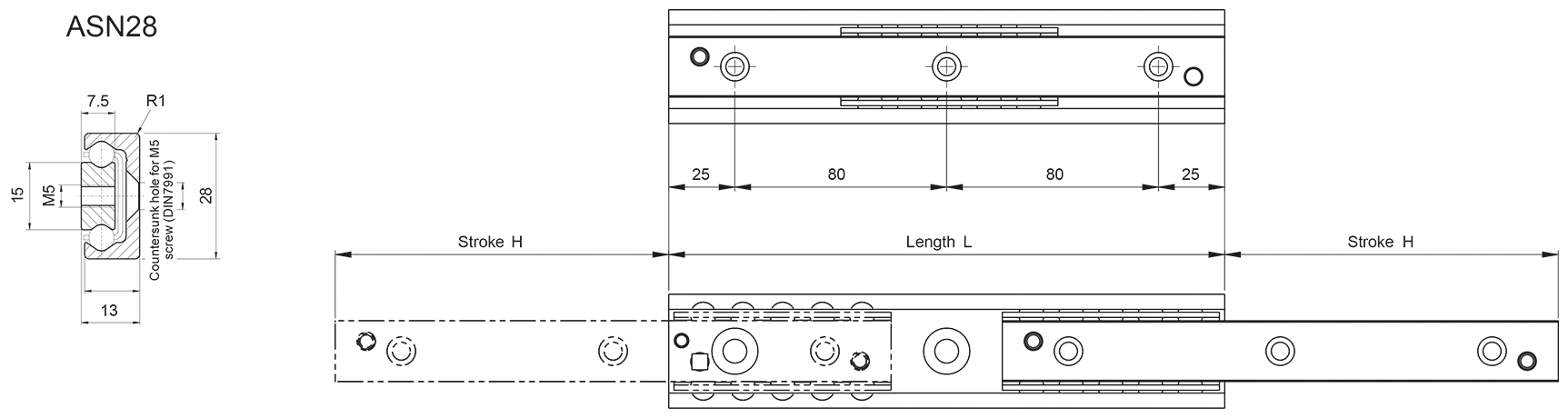

Technical Drawing
Designation Mx moment (Nm) My moment (Nm) Mz moment (Nm)
15,30 20,00 28,00
26,10 57,00 82,00
39,60 132,00 188,00
50,40 213,00 305,00
61,20 314,00 449,00
72,00 435,00 621,00
82,80 575,00 821,00
93,60 735,00 1 050,00
104,40 914,00 1 306,00
117,90 1 165,00 1 665,00
128,70 1 389,00 1 984,00
139,50 1 613,00 2 330,00
150,30 1 894,00 2 705,00
161,10 2 175,00 3 108,00
