Magnetic Field Sensors

Dimension in mm.

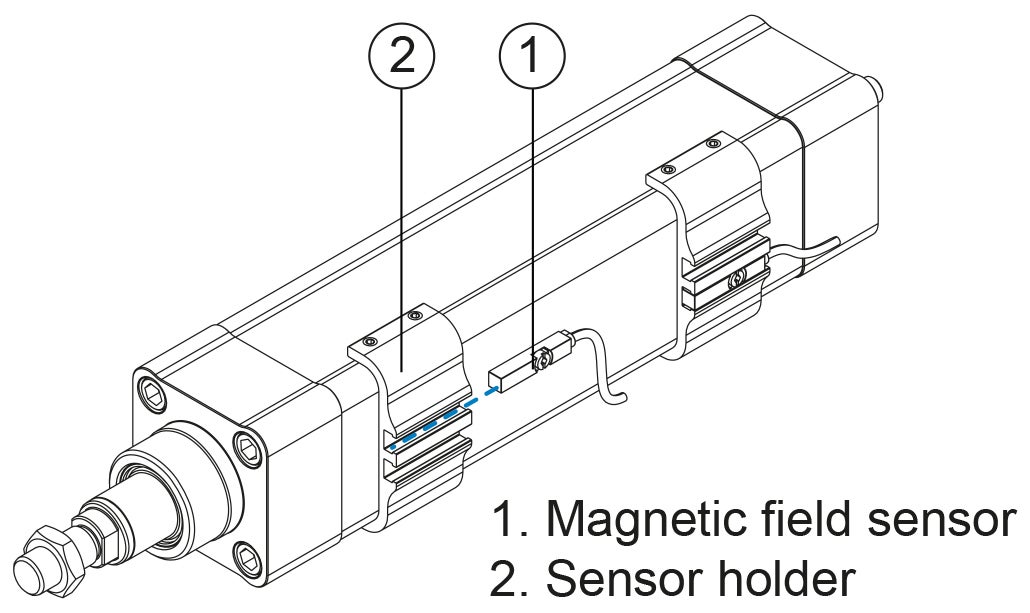

Note! Mounting of the Magnetic field sensor on PNCE requires a HPNCE sensor holder.
Ladda ner PDF Generating PDF
+ Lägg till i PDF-katalog

Product Information

Sensor Type: GMR sensor
Switching function: NC or NO
Output: PNP
Operating Voltage (V DC): 10 ~ 28
Max. Switching Current (mA): 200
Max. Power Rating (W): 5.5
Voltage drop: 1.5 V / 200mA max.
Current consumption: 10mA / 24 V max.
Switching Frequency (Hz): 1000
Ambient Temperature (°C): -10 ~ +70
Shock/vibration: 50 G / 9 G
Protection class: IP67
LED indicator: Yellow
Electrical connection: M8, 3-pin
Cable material length: PU - 0.3m
Extension cable: Energy chain compliant
Designation Select all Lead Time * Type Compatible with Cable Length (m)
/storage/395C75C699D554A72C2A9F8420C1EDB21AD83167019921238DBD25BC79D37F8C/b4f77f8805c945c496bde0543628c945/stp/media/c80b46ee606441b4a6611d1452bae0f0/CAD_SMT65TPKNC-74073_MagneticSensor_Rollco.stp 2 Magnetic sensor PNCE series -
Get quote
/storage/9DE4519B63091E9F9E75BE1F151A9AC78011FCB06FCE616E410604046B92C5DF/3005dd5ff41048818dfc2343b8b12def/stp/media/d2b091fbe4db4decbe053ba09f806968/CAD_SMT65TPKNO-74074_MagneticSensor_Rollco.stp 2 Magnetic sensor PNCE series -
Get quote
/storage/F9A295D917112DC4E9AF42B851C29DD4FFA1F3AF2A6E542411069FB3040A4A7F/6785065f1ce2472b86003114ff402b51/stp/media/c7f177750d1a458994530ad3273a89a6/CAD_HPNCE32-68997_SensorHolder_Rollco.stp 2 Sensor holder PNCE 32 -
Get quote
/storage/B571BD0AC6475C86A237B252250CAAC9BE0D45A3F9B21891002D713C297D2765/59501005fc7c4f8da29d7b2387c65e9c/stp/media/a412e61dc678465bb730740a2c1192f0/CAD_HPNCE40-68998_SensorHolder_Rollco.stp 2 Sensor holder PNCE 40 -
Get quote
/storage/E7FB8EFB7930FECCB2430E41551D7B3DB1BA98C274BB9C8E14AE56CC3FF88F67/e6403eb6cb3f48eb9cc9a50d3408ef70/stp/media/0c342d349e14469dbf737b321ba57cfa/CAD_HPNCE50-68999_SensorHolder_Rollco.stp 2 Sensor holder PNCE 50 -
Get quote
/storage/6AC0BC1E16EF78C0F1D0601599553B40B8E49A95B66098288793B9C7E1C807CA/1ecd44dafe02499081bd5af53556fbc9/stp/media/97006878e1144c3e8bb031d624b86e7c/CAD_HPNCE63-69000_SensorHolder_Rollco.stp 2 Sensor holder PNCE 63 -
Get quote
/storage/AEF8CC81429E8E1C747FBDA7B5BD7FFD69725BBC1EA68BF6735AA987EDBD1C89/6fdf9b74e91b40348a34394b0fe5d7d5/stp/media/a7059ffcbb884e03a66c6b563d74e9a5/CAD_HPNCE80-79053_SensorHolder_Rollco.stp 2 Sensor holder PNCE 80 -
Get quote
/storage/4C858AA6FB374E4B348DCF281D87BC47991C958B671CE46AFFA0BC6915A916B4/e9c1da15c4bc4771b1a3472822868469/stp/media/8cafcaf636fe4f5bac560968c934af43/CAD_HPNCE100-79054_SensorHolder_Rollco.stp 2 Sensor holder PNCE 100 -
Get quote
2 Straight connector extension cable PNCE series 2
Get quote
/storage/428F317B38098EF04D6995E629F3A93404BF2636F949013C794D114B7849CF3A/dabe1e7664da4c76b1d61882d8b7f68b/stp/media/2cfde349d7b24da98554d6e161cd1dce/CAD_Cable-8147_ExtensionCable_Rollco.stp 2 Straight connector extension cable PNCE series 5
Get quote
/storage/C4F65E598F462D5EB8E355ADCE4315B4B02B0EB0C8A319E48A921EDE7C1F646E/97d52d498ca44761a32be09049b82f9f/stp/media/abcd7713e720416187f836c8dbbe4340/CAD_Cable-9017_ExtensionCable_Rollco.stp 2 Angled connector extension cable PNCE series 2
Get quote
/storage/90968DF62FABD957C3C9EB987DF9CF2B05E466647999A79BE85335FE63F1BA9D/7a37b2862d8e4854b5e7d697d4e3fd3f/stp/media/7789796fb5a04eb7a261c109e26025bb/CAD_Cable-9019_ExtensionCable_Rollco.stp 2 Angled connector extension cable PNCE series 5
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all L1 L2 L3 L4 L5
/storage/395C75C699D554A72C2A9F8420C1EDB21AD83167019921238DBD25BC79D37F8C/b4f77f8805c945c496bde0543628c945/stp/media/c80b46ee606441b4a6611d1452bae0f0/CAD_SMT65TPKNC-74073_MagneticSensor_Rollco.stp - - - - -
Get quote
/storage/9DE4519B63091E9F9E75BE1F151A9AC78011FCB06FCE616E410604046B92C5DF/3005dd5ff41048818dfc2343b8b12def/stp/media/d2b091fbe4db4decbe053ba09f806968/CAD_SMT65TPKNO-74074_MagneticSensor_Rollco.stp - - - - -
Get quote
/storage/F9A295D917112DC4E9AF42B851C29DD4FFA1F3AF2A6E542411069FB3040A4A7F/6785065f1ce2472b86003114ff402b51/stp/media/c7f177750d1a458994530ad3273a89a6/CAD_HPNCE32-68997_SensorHolder_Rollco.stp 30 53 6.5 19.5 10
Get quote
/storage/B571BD0AC6475C86A237B252250CAAC9BE0D45A3F9B21891002D713C297D2765/59501005fc7c4f8da29d7b2387c65e9c/stp/media/a412e61dc678465bb730740a2c1192f0/CAD_HPNCE40-68998_SensorHolder_Rollco.stp 30 60 6.5 19.5 10
Get quote
/storage/E7FB8EFB7930FECCB2430E41551D7B3DB1BA98C274BB9C8E14AE56CC3FF88F67/e6403eb6cb3f48eb9cc9a50d3408ef70/stp/media/0c342d349e14469dbf737b321ba57cfa/CAD_HPNCE50-68999_SensorHolder_Rollco.stp 30 71 6.5 22.5 10
Get quote
/storage/6AC0BC1E16EF78C0F1D0601599553B40B8E49A95B66098288793B9C7E1C807CA/1ecd44dafe02499081bd5af53556fbc9/stp/media/97006878e1144c3e8bb031d624b86e7c/CAD_HPNCE63-69000_SensorHolder_Rollco.stp 30 81 6.5 22.5 10
Get quote
/storage/AEF8CC81429E8E1C747FBDA7B5BD7FFD69725BBC1EA68BF6735AA987EDBD1C89/6fdf9b74e91b40348a34394b0fe5d7d5/stp/media/a7059ffcbb884e03a66c6b563d74e9a5/CAD_HPNCE80-79053_SensorHolder_Rollco.stp 30 98.3 6 25 10
Get quote
/storage/4C858AA6FB374E4B348DCF281D87BC47991C958B671CE46AFFA0BC6915A916B4/e9c1da15c4bc4771b1a3472822868469/stp/media/8cafcaf636fe4f5bac560968c934af43/CAD_HPNCE100-79054_SensorHolder_Rollco.stp 30 115.4 6 25 10
Get quote
- - - - -
Get quote
/storage/428F317B38098EF04D6995E629F3A93404BF2636F949013C794D114B7849CF3A/dabe1e7664da4c76b1d61882d8b7f68b/stp/media/2cfde349d7b24da98554d6e161cd1dce/CAD_Cable-8147_ExtensionCable_Rollco.stp - - - - -
Get quote
/storage/C4F65E598F462D5EB8E355ADCE4315B4B02B0EB0C8A319E48A921EDE7C1F646E/97d52d498ca44761a32be09049b82f9f/stp/media/abcd7713e720416187f836c8dbbe4340/CAD_Cable-9017_ExtensionCable_Rollco.stp - - - - -
Get quote
/storage/90968DF62FABD957C3C9EB987DF9CF2B05E466647999A79BE85335FE63F1BA9D/7a37b2862d8e4854b5e7d697d4e3fd3f/stp/media/7789796fb5a04eb7a261c109e26025bb/CAD_Cable-9019_ExtensionCable_Rollco.stp - - - - -
Get quote
  • PNCE 32

    Based standard ISO 15552 w. ball screw and non-rotating piston rod for high performance
  • PNCE 80

    Based standard ISO 15552 w. ball screw and non-rotating piston rod for high performance
  • PNCE 50

    Based standard ISO 15552 w. ball screw and non-rotating piston rod for high performance
  • PNCE 63

    Based standard ISO 15552 w. ball screw and non-rotating piston rod for high performance
  • PNCE 40

    Based standard ISO 15552 w. ball screw and non-rotating piston rod for high performance
  • PNCE 100

    Based standard ISO 15552 w. ball screw and non-rotating piston rod for high performance
