Motor Side Drive with a Timing Belt

Side drive for PNCE Electromechanical cylinder.
Mounting screws are included.

Note: This is an dummy item. The motor flange will be designed after receipt of order and drawing of requested motor type. The geometry of motor flange can be changed in order to adapt it to a requested motor type.

Dimensions in mm.
Max. radial load on shaft on shaft is the load which is linearly dependent on the maximum drive torque Mp, MSD and is generated by the correct pretension of the belt. This load needs to be reduced in accordance with the capabilities of the motor.
Mass in an average value. It could differ depending to the motor dimensions.
N in the table below indicates standard value. It could differ depending to the motor dimensions M and L1.

For order information, see Order Codes. Contact us for CAD-files and further information.

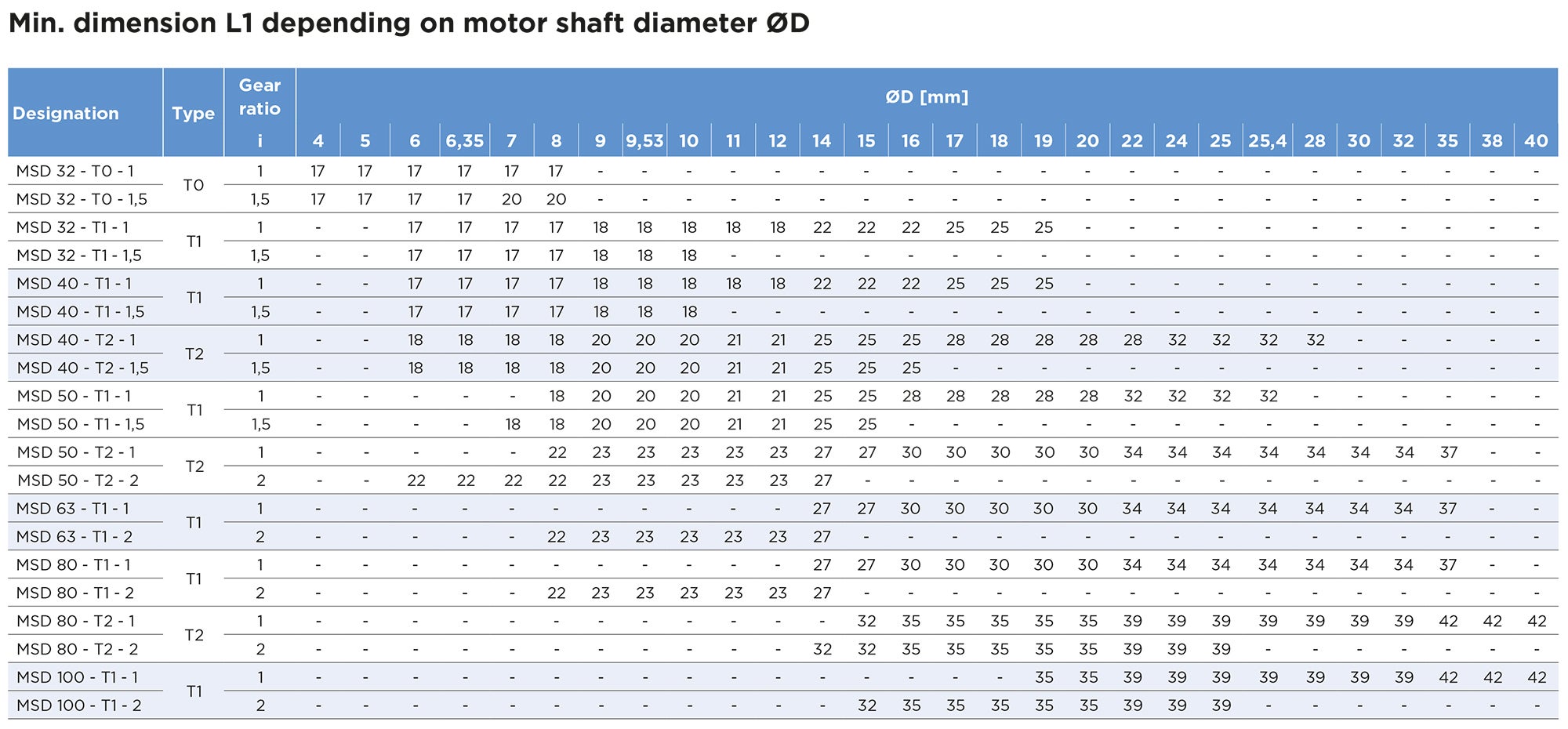

** Minimum dimension L1 depends on the size of particular clamping set. See attached table.
Ladda ner PDF Generating PDF
+ Lägg till i PDF-katalog

Product Information

Designation Select all Lead Time * Type Compatible with Gear ratio (I) Max. Drive Torque (Nm) Max. Radial Load on Shaft (N) No Load Torque (Nm) Mass moment of inertia (10(⁻⁶) Mass (kg)
2 T0 PNCE 32 1 1 40 0.03 4.6 0.5
Get quote
2 T1 PNCE 32 1 1.4 40 0.1 53 0.85
Get quote
2 T1 PNCE 32 1.5 0.9 40 0.07 31 0.72
Get quote
2 T1 PNCE 40 1 3 80 0.1 62 0.92
Get quote
2 T1 PNCE 40 1.5 2 80 0.07 44 0.79
Get quote
2 T2 PNCE 40 1 4 80 0.27 288 1.66
Get quote
2 T2 PNCE 40 1.5 2.6 80 0.18 200 1.39
Get quote
2 T1 PNCE 50 1 9 170 0.27 363 1.76
Get quote
2 T1 PNCE 50 1.5 6 170 0.18 245 1.48
Get quote
2 T2 PNCE 50 1 9 205 0.3 928 3.63
Get quote
2 T2 PNCE 50 2 4.5 205 0.15 559 3.06
Get quote
2 T1 PNCE 63 1 21 500 0.34 1041 3.72
Get quote
2 T1 PNCE 63 2 8.9 400 0.17 616 3.1
Get quote
2 T1 PNCE 80 1 24 500 0.34 1008 3.72
Get quote
2 T1 PNCE 80 2 10 400 0.17 575 3.3
Get quote
2 T2 PNCE 80 1 48 500 0.37 6000 9.3
Get quote
2 T2 PNCE 80 2 24 500 0.18 4145 8.6
Get quote
2 T1 PNCE 100 1 110 1000 0.4 6181 9.4
Get quote
2 T1 PNCE 100 2 50 1000 0.2 4333 8.8
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all B E F G G2 N K L P M2 C
max 60 58.5 (±0.5) 52 39 33 6 26 113 32.5 Ø M6×8.5 max Ø 36
Get quote
max 80 65 (±0.5) 68 42 36 8 31 135 32.5 Ø M6×8.5 max Ø 52
Get quote
max 80 64.5 (±0.5) 68 42 36 8 31 135 32.5 Ø M6×8.5 max Ø 52
Get quote
max 80 65 (±0.5) 68 46 40 8 31 135 38 Ø M6×8.5 max Ø 52
Get quote
max 80 64.5 (±0.5) 68 46 40 8 31 135 38 Ø M6×8.5 max Ø 52
Get quote
max 110 82.5 (±0.5) 89 57 51 8 42 174 38 Ø M6×8.5 max Ø 75
Get quote
max 110 81.7 (±0.5) 89 57 51 8 42 174 38 Ø M6×8.5 max Ø 75
Get quote
max 110 82.5 (±0.5) 89 57 51 8 42 174 46.5 Ø M8×9 max Ø 75
Get quote
max 110 81.7 (±0.5) 89 57 51 8 42 174 46.5 Ø M8×9 max Ø 75
Get quote
max 140 120 (±0.5) 116 66 60 10 49.5 239 46.5 Ø M8×9 max Ø 100
Get quote
max 140 125.8 (±0.5) 116 66 60 10 49.5 239 46.5 Ø M8×9 max Ø 95
Get quote
max 140 120 (±0.5) 116 66 60 10 49.5 239 56.5 Ø M8×10 max Ø 100
Get quote
max 140 125.8 (±0.5) 116 66 60 10 49.5 239 56.5 Ø M8×10 max Ø 95
Get quote
max 140 120 (±0.5) 116 77 67 10 49.5 239 72 Ø M10×17 max Ø 100
Get quote
max 140 125.8 (±0.5) 116 77 67 10 49.5 239 72 Ø M10×17 max Ø 95
Get quote
max 195 155 (±0.5) 160 102 94 15 77 317 72 Ø M10×17 max Ø 145
Get quote
max 195 151.6 (±0.5) 160 102 94 15 77 317 72 Ø M10×17 max Ø 130
Get quote
max 195 155 (±0.5) 160 102 94 15 77 317 89 Ø M10×17 max Ø 145
Get quote
max 195 151.6 (±0.5) 160 102 94 15 77 317 89 Ø M10×17 max Ø 130
Get quote
Designation Select all A B L1 Min. Clamping set L1 Min. Keyway L1 max. C ØD Max. Clamping set ØD Min. Keyway ØD Max. Keyway
max 52 max 60 ** 20 32 max Ø 36 8 >8 12
Get quote
max 74 max 80 ** 25 38 max Ø 52 19 - -
Get quote
max 74 max 80 ** 25 38 max Ø 52 10 >10 14
Get quote
max 74 max 80 ** 25 42 max Ø 52 19 - -
Get quote
max 74 max 80 ** 25 42 max Ø 52 10 >10 14
Get quote
max 95 max 110 ** 30 52 max Ø 75 28 - -
Get quote
max 95 max 110 ** 30 52 max Ø 75 16 >16 24
Get quote
max 95 max 110 ** 30 52 max Ø 75 28 - -
Get quote
max 95 max 110 ** 30 52 max Ø 75 16 >16 24
Get quote
max 122 max 140 ** 35 62 max Ø 100 35 - -
Get quote
max 122 max 140 ** 35 62 max Ø 95 15 >15 22
Get quote
max 122 max 140 ** 35 62 max Ø 100 35 - -
Get quote
max 122 max 140 ** 35 62 max Ø 95 15 >15 22
Get quote
max 122 max 140 ** 35 68 max Ø 100 35 - -
Get quote
max 122 max 140 ** 35 68 max Ø 95 15 >15 22
Get quote
max 160 max 195 ** 45 99 max Ø 145 40 - -
Get quote
max 160 max 195 ** 45 99 max Ø 130 25.4 >25.4 38
Get quote
max 160 max 195 ** 45 99 max Ø 145 40 - -
Get quote
max 160 max 195 ** 45 99 max Ø 130 25.4 >25.4 38
Get quote
  • PNCE 32

    Based standard ISO 15552 w. ball screw and non-rotating piston rod for high performance
  • PNCE 80

    Based standard ISO 15552 w. ball screw and non-rotating piston rod for high performance
  • PNCE 50

    Based standard ISO 15552 w. ball screw and non-rotating piston rod for high performance
  • PNCE 63

    Based standard ISO 15552 w. ball screw and non-rotating piston rod for high performance
  • PNCE 40

    Based standard ISO 15552 w. ball screw and non-rotating piston rod for high performance
  • PNCE 100

    Based standard ISO 15552 w. ball screw and non-rotating piston rod for high performance
