PNCE 32
Based standard ISO 15552 w. ball screw and non-rotating piston rod for high performance

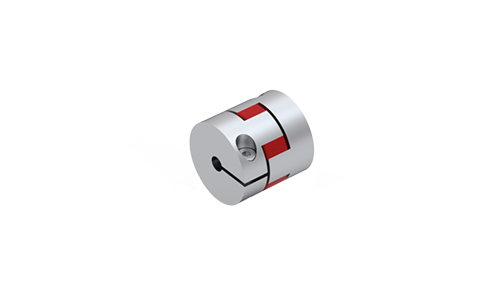

Couplings
Dimension in mm.

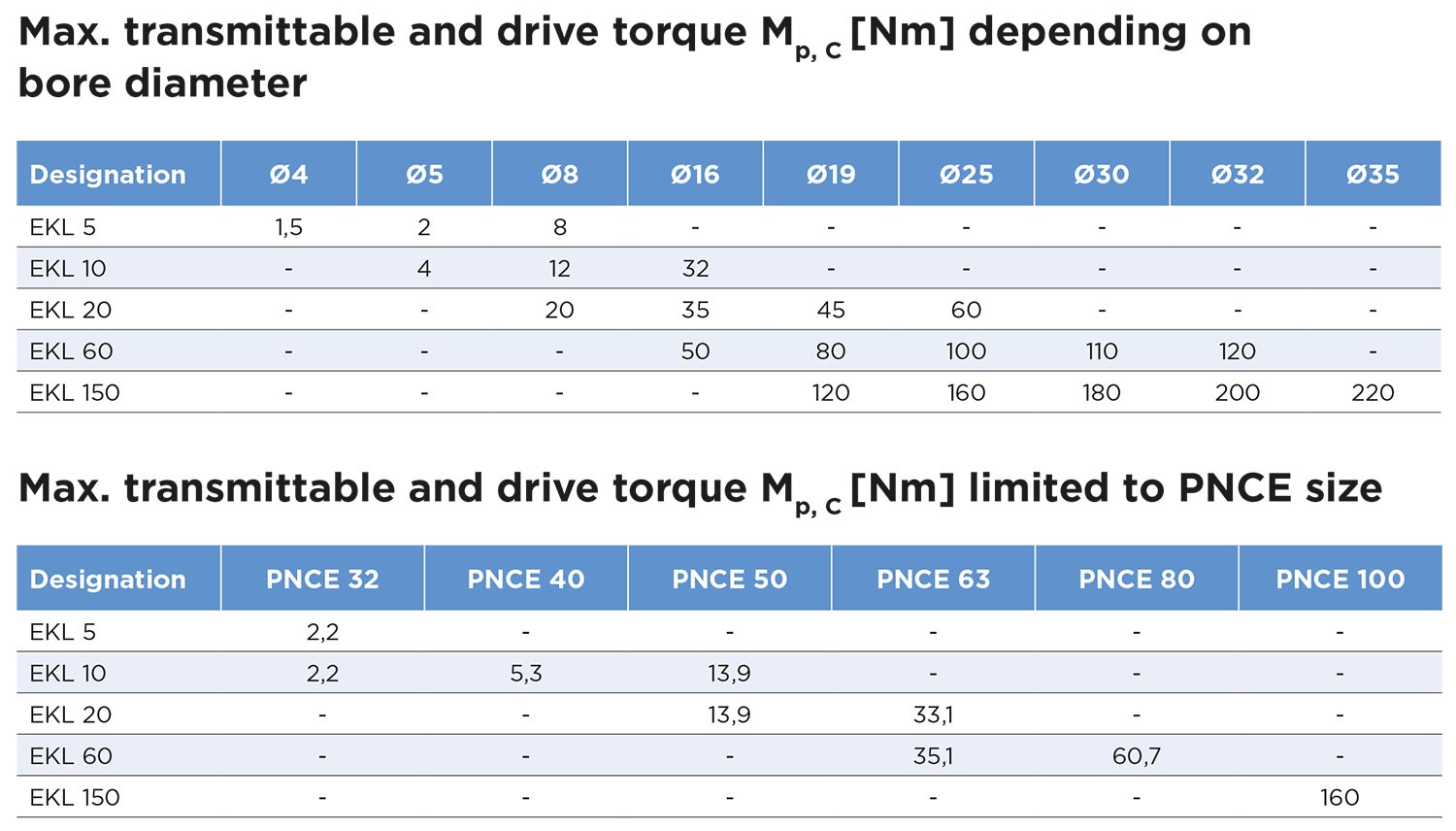

The maximum transmittable torque of the clamping hub depends on the bore diameter and is limited to the size of the PNCE.
The maximum transmittable torque of the clamping hub depends on the bore diameter and is limited to the size of the PNCE.
Ladda ner PDF
Generating PDF
+
Lägg till i PDF-katalog
Product Information
| Designation | Select all | Lead Time * | Rated Torque (Nm) | Max. Torque (Nm) | G | A | B | H | F | C | D1 | D2 | D3 | D4 | E | Tightening Torque of the Clamping Screw (Nm) | Moment of inertia per hub (10⁻³ kg m²) | Speed standard (min⁻¹) | Weight (kg) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
2 | 9 | 18 | 4 | 26 | 25 | 16.7 | 8 | 8 | 4 | 12.7 | 25 | 10.2 | M3 | 2 | 0.002 | 15000 | ≈ 0.02 |
|
||
|
|
2 | 12.5 | 25 | 5 | 32 | 32 | 20.7 | 10.5 | 10.3 | 4 | 16 | 32 | 14.2 | M4 | 4 | 0.003 | 13000 | ≈ 0.05 |
|
||
|
|
2 | 17 | 34 | 8.5 | 50 | 42 | 31 | 15.5 | 17 | 8 | 25 | 44.5 | 19.2 | M5 | 8 | 0.01 | 12500 | ≈ 0.12 |
|
||
|
|
2 | 60 | 120 | 10 | 58 | 56 | 36 | 21 | 20 | 12 | 32 | 57 | 26.2 | M6 | 15 | 0.04 | 11000 | ≈ 0.3 |
|
||
|
|
2 | 160 | 320 | 11 | 62 | 66.5 | 39 | 24 | 21 | 19 | 36 | 68 | 29.2 | M8 | 35 | 0.08 | 10000 | ≈ 0.5 |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
-
-
