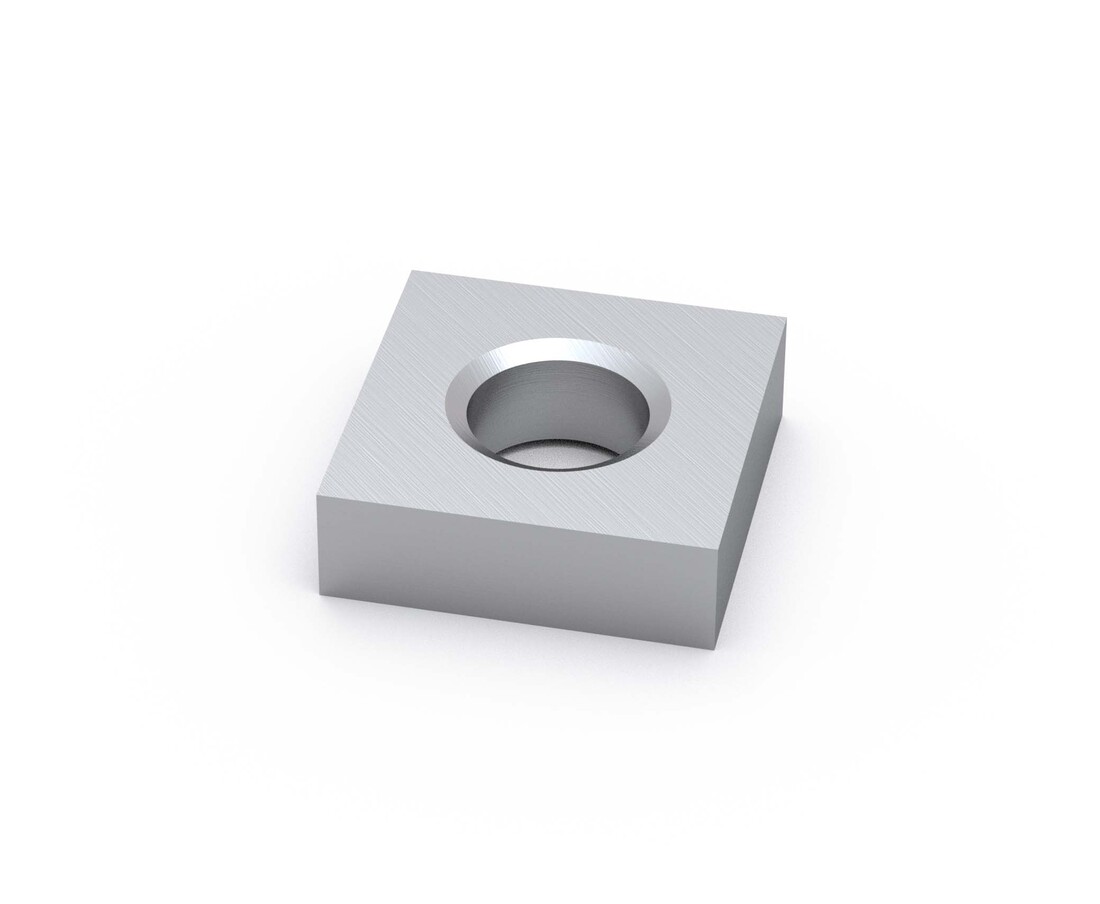

Slot nut
Mini electric cylinder and slider can be mounted by using the slot nuts which are placed in the slots on the
bottom side of the profile.
bottom side of the profile.
Ladda ner PDF
Generating PDF
+
Lägg till i PDF-katalog
Product Information
Material: Galvanized steel
| Designation | Select all | Lead Time * | Compatible with | Mass (g) | Nut type | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|
|
|
2 | MCE/MSCE 25 | 0.013 | DIN562 - M2 |
|
|||
|
|
2 | MCE/MSCE 32 | 0.035 | DIN562 - M3 |
|
|||
|
|
/storage/E66C4F7128D211E1CF2355F48B633BBC1F2738CBF87DB25D4FF8B6D56DBAFB3A/805c70976a774034b5043129be873594/stp/media/1f9209312d324fae801de7a6ffaf52d7/CAD_SlotNut45-40682_SlotNut_Rollco.stp | 1 | MCE/MSCE 45 | 0.064 | DIN562 - M4 |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
