Linear Unit QME

LOCALLY MANUFACTURED

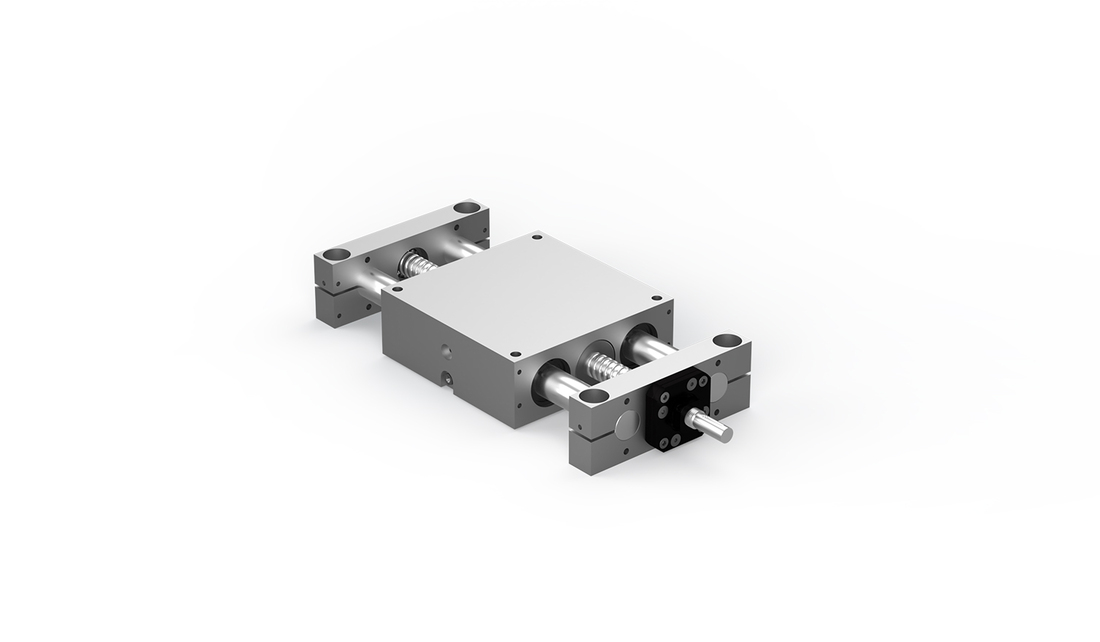

QME is a ready to mount positioning table guided with linear ball bearings on hardened shafts and driven by ball-or lead screw. QME can be manually driven by handwheel using either ball screw or lead screw. For drive by motor, the ball screw versions are strongly recommended for sustained performance and precision.

Customized machining of the drive- and mounting interfaces, higher level of corrosion resistance or low/high temperature versions, please contact Rollco.

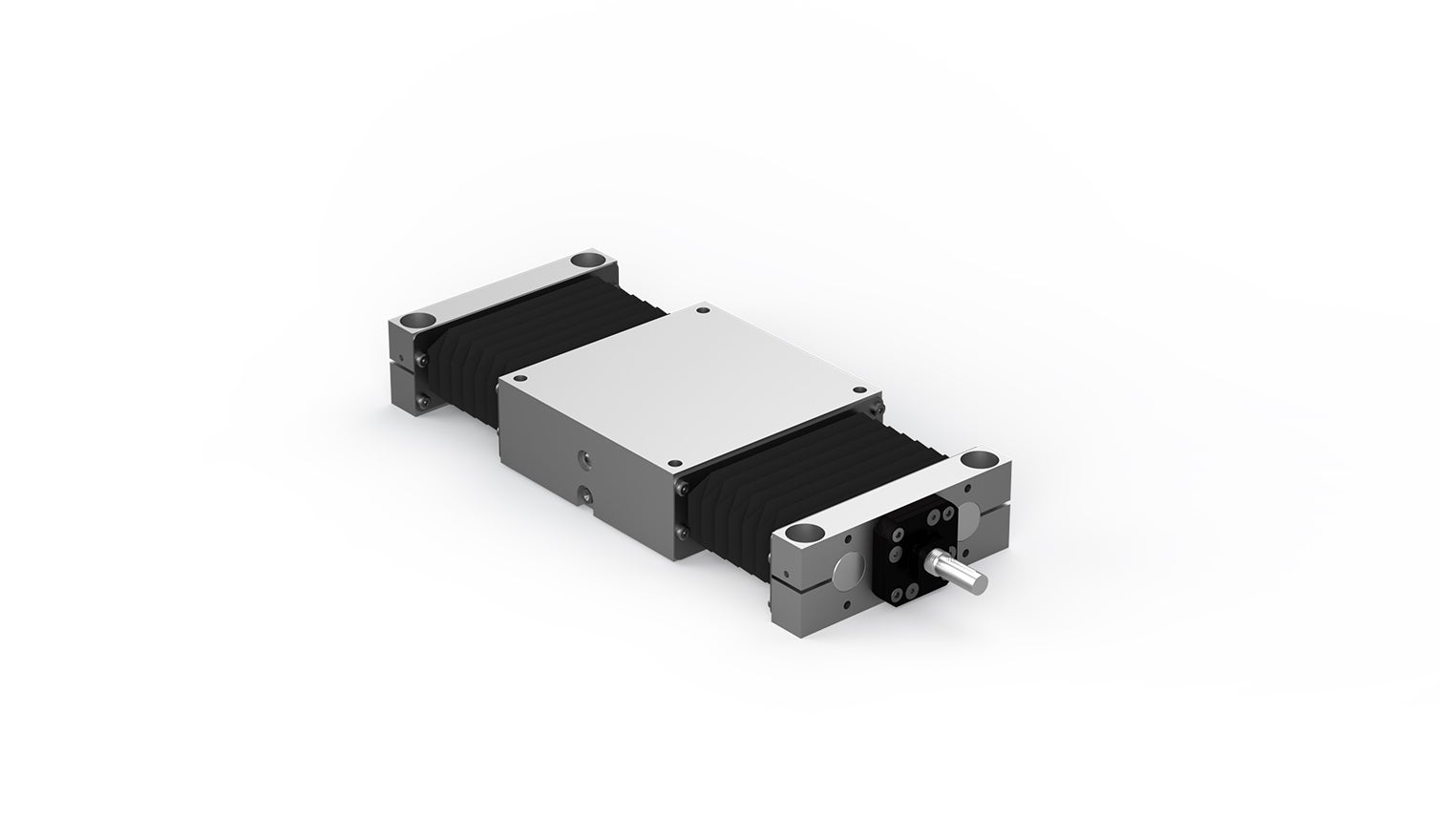

Bellow for Linear Unit QME is recommended for all applications where the unit isn’t protected against dust and dirt. The bellow may also work as a pinch protection.

All dimensions in mm.

QME12: Max. L tot: 1 000 mm
QME20: Max. L tot: 1 500 mm
QME30: Max. L tot: 2 000 mm
Read more
Download PDF (all data) Generating PDF
+ Add to PDF catalogue
Configure CAD Download CAD
Designation Select all CAD Compare Get quote Lead Time * Screw Type Static Load Capacity Fz (N) Dynamic Load Capacity Fz (N) Static Load Capacity Fy (N) Dynamic Load Capacity Fy (N) Static Load Capacity Mx (Nm) Dynamic Load Capacity Mx (Nm) Static Load Capacity My (Nm) Dynamic Load Capacity My (Nm) Static Load Capacity Mz (Nm) Dynamic Load Capacity Mz (Nm) Dynamic Capacity Ca (N) Permissible Fx (N)
2 SR082,5, TR1203, TL1203 3160 2080 3160 2080 71 47 74 49 74 49 2030 (n/a for TR) 1400
2 SR1605, TR1604, TL1604 5600 3520 5600 3520 202 127 216 136 216 136 7100 (n/a for TR) 2500
2 SR3205, SL3205, SR3210, SR3220, TR3006 11200 6400 11200 6400 728 416 678 387 678 387 9500 (n/a for TR) 3200

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote Ltot Bellow Ltot B (P9 )x L33 x T D1 d1 D2 d2 d3 d8 H h h1 h2 h3 h4 h5 J L L1 L2 L3 L4 L31 L32 M W W1 W2
Absolute stroke +98 Absolute stroke *1.28+113 - 10 5.2 10 5.5 2 6 (h7) 31.5 15 5.5 5.7 1.5 7.5 1.5 73 85 12 14 13 13.5 - 7 M6 x 15 85 73 45
Absolute stroke +150 Absolute stroke *1.23+166 3 x 18 x 1.8 11 6.8 18 11 - 10 (h7) 48 24 8 13.5 2 7.5 2 115 130 20 20 47.5 - 25 - M8 x 18 130 108 72
Absolute stroke +222 Absolute stroke *1.18+238 5 x 36 x 3 11 6.8 20 13 - 16 (h7) 71 36 8 14 2 15 1 184 200 22 22 80 - 45 - M8 x 20 200 178 130
Designation Select all CAD Compare Get quote Zero stroke (kg) Moving part (kg) +/100 mm stroke (kg) Remark
1.02 / 1.04 with bellows 0.55 / 0.57 with bellows 0.22 / 0.28 with bellows Masses may deviate +/- 5% depending on screw type and other options.
3.52 / 3.56 with bellows 1.76 / 1.80 with bellows 0.65 / 0.80 with bellows Masses may deviate +/- 5% depending on screw type and other options.
12.3 / 12.4 with bellows 5.77 / 5.91 with bellows 1.73 / 2.04 with bellows Masses may deviate +/- 5% depending on screw type and other options.
  • LOCALLY MANUFACTURED

    Linear Unit QME-WIL
    Linear unit with handwheel, locking and position indicator guided with linear ball bearings on hardened shafts and driven by ball-or lead screw
  • LOCALLY MANUFACTURED

    Linear Unit QME-WL
    Linear unit with handwheel-locking guided with linear ball bearings on hardened shafts and driven by ball-or lead screw
  • LOCALLY MANUFACTURED

    Linear Unit QME-W
    Linear unit with handwheel guided with linear ball bearings on hardened shafts and driven by ball-or lead screw
