Ball nut, miniature, cylindrical with thread for right lead (SR) screw
SFKR

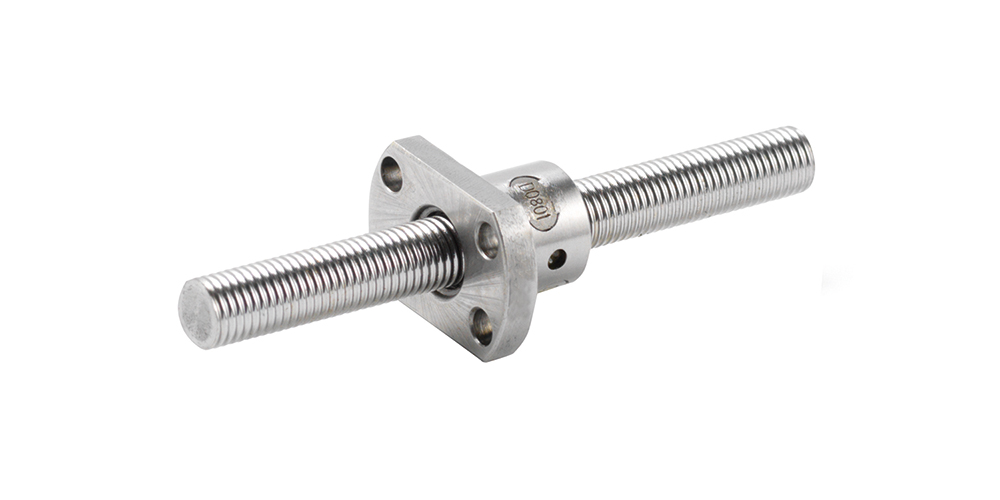

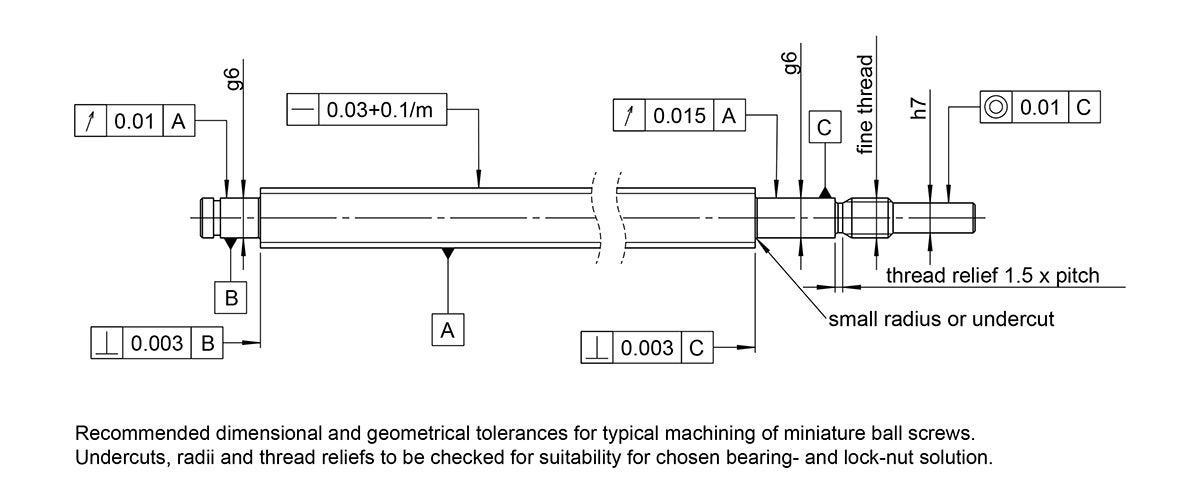

SFKR are miniature ball screws, best suitable for small manipulators, instruments etc. They enable very high positioning precision and stiffness because of the small lead. For optimal operation they do, however, require very high cleanliness and accuracy when built into an application.
A limited service- and prototyping-stock of basic grade with rolled spindles (C7) and axial play in the nut (P0) is kept available. For more demanding applications or larger quantities, contact us.
Standard nuts are with scrapers. Other types on request.
All dimensions in mm.
A limited service- and prototyping-stock of basic grade with rolled spindles (C7) and axial play in the nut (P0) is kept available. For more demanding applications or larger quantities, contact us.
Standard nuts are with scrapers. Other types on request.
All dimensions in mm.
Ladda ner PDF (all data)
Generating PDF
+
Lägg till i PDF-katalog
Product Information
| Designation | Select all | Lead Time * | Compatible with | Dynamic Load Ratings Ca (N) | Static Load Ratings C0a (N) | CAD | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|
|
|
/storage/8A27351A6F203F1470C21756C717181713B7E02CCB23A99DFFD00A821AD93E8F/d8e03551147744b8953b3f588c82ce6b/STEP/media/e9fd68e68d6a4c9cb810d433a59fb1c0/SFK00601.STEP | 1 | — | 1110 | 2240 |
|
|||
|
|
/storage/488D538BC8348E81E5214D7625CBC196848BFCDBDE35093FC87C8C94A12FE43C/90d64dc53bd44bedb8d9b20f7c595871/STEP/media/981f850bd9f74c43b4836e88f0751a39/SFK0801.STEP | 1 | FKN06 | 1610 | 4030 |
|
|||
|
|
/storage/21E2EC7E74A2279FD58D0BCEDF582D1AB5DBA378C76AB37457F2F1EC3E719AA3/6ca6f08539c94af38e7841f5592fb78a/STEP/media/0a77989a86b6486188823beb74f26aa7/SFK01002.STEP | 1 | FKN06 | 2430 | 5690 |
|
|||
|
|
/storage/C401B36BCB7D997D4875261FDDC9088FF87BE74D52397D1872BA9788C5AFA29B/727ad588957a442ba08c00e3b8ebdaaf/STEP/media/4402489e22df447d81ba3ac986cbb605/SFK01202.STEP | 1 | BKN08 / FKN08 / BFN08 | 3340 | 9060 |
|
|||
|
|
/storage/ADE7945D91418903596AEF4220C5EBC64D30617F7A6C751F4DCEE6AECB54CB43/a79398af32fb4be98ca03b8a1a96527f/STEP/media/a37a09cd03a44932b69ada44a0327023/SFK01402.STEP | 1 | BKN10 / FKN10 / BFN10 / FFN10 | 3540 | 10530 |
|
