Belt Profiles
Please be aware that the material of the profiles must be the same as the chosen belt.
Dimensions in mm.
Dimensions in mm.
Ladda ner PDF
Generating PDF
+
Lägg till i PDF-katalog
Product Information
| Designation | Select all | Code | Compatible with | Material | Colour | FDA | B | H | ||
|---|---|---|---|---|---|---|---|---|---|---|
|
|

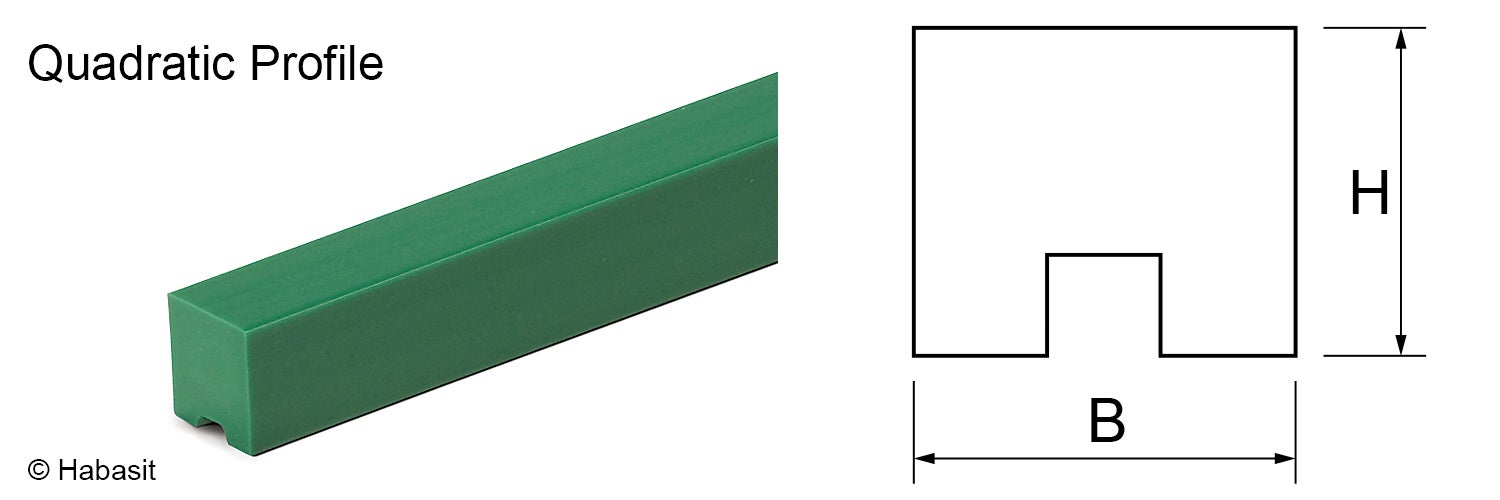

1 | BF40E & BF80E | TPU | Green/White | Yes | 8 | 4 | |||
|
|
1 | BF40E & BF80E | TPU | Green/White | Yes | 8 | 8 | |||
|
|
1 | BF80E | TPU | Green/White | Yes | 12 | 12 | |||
|
|
1 | BF80E | TPU | Green/White | Yes | 12 | 16 | |||
|
|
1 | BF40E & BF80E | PVC | Green/Grey | Available (E-PQ-R) | 8 | 4 | |||
|
|
1 | BF40E & BF80E | PVC | Green/Grey | Available (E-PQ-R) | 8 | 8 | |||
|
|
1 | BF80E | PVC | Green/Grey | Available (E-PQ-R) | 12 | 12 | |||
|
|
1 | BF80E | PVC | Green/Grey | Available (E-PQ-R) | 12 | 16 | |||
|
|

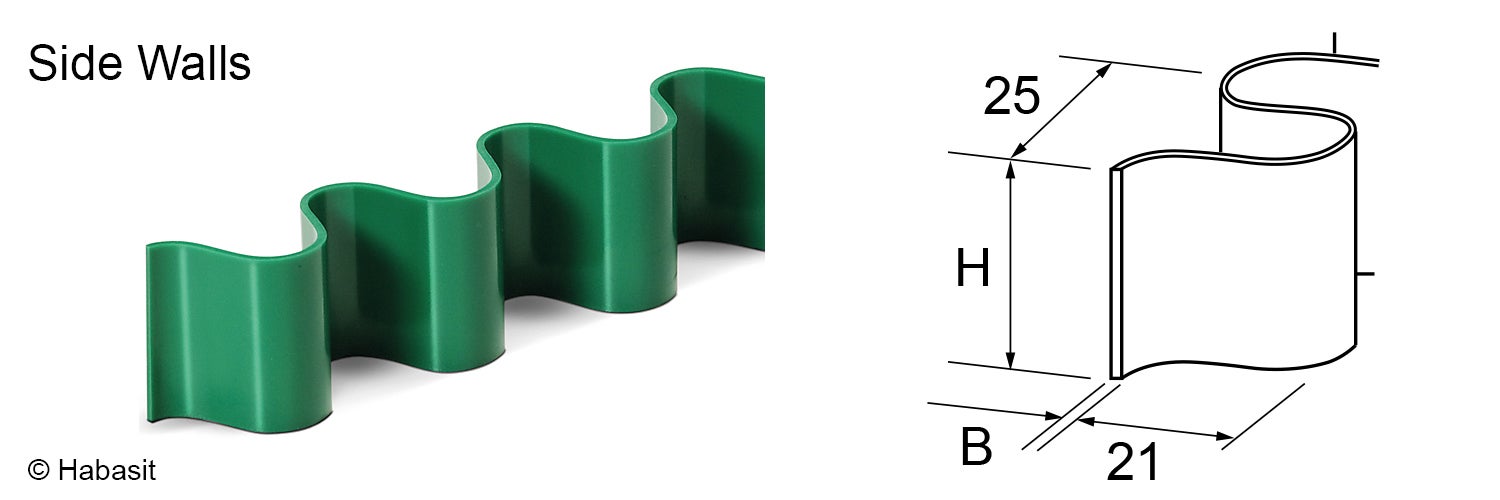

2 | BF40E & BF80E | TPU | Green/Blue/White | Yes | 10.5 | 20 | |||
|
|
2 | BF40E & BF80E | TPU | Green/Blue/White | Yes | 10.5 | 30 | |||
|
|
2 | BF40E & BF80E | TPU | Green/Blue/White | Yes | 10.5 | 40 | |||
|
|
2 | BF40E & BF80E | TPU | Green/Blue/White | Yes | 10.5 | 60 | |||
|
|
2 | BF40E & BF80E | TPU | Green/Blue/White | Yes | 10.5 | 80 | |||
|
|

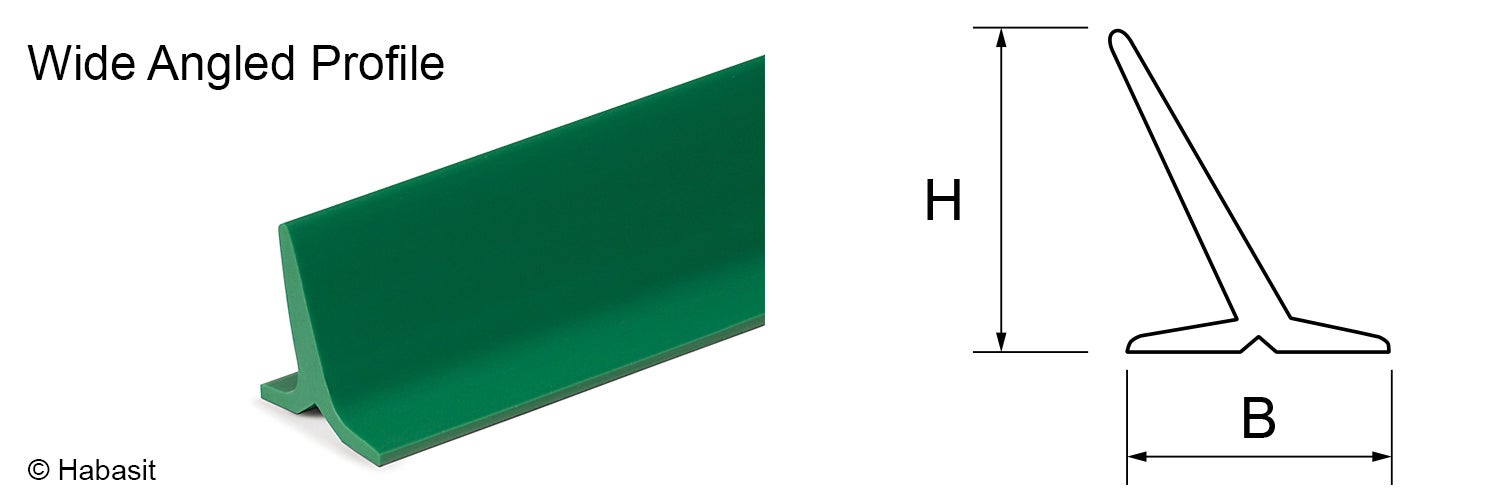

3 | BF80E | TPU | Green/White | Yes | 20 | 20 | |||
|
|
3 | BF80E | TPU | Green/White | Yes | 30 | 30 | |||
|
|
3 | BF80E | PVC | Green/White | Available (E-PQ-R) | 20 | 20 | |||
|
|
3 | BF80E | PVC | Green/White | Available (E-PQ-R) | 30 | 30 | |||
|
|

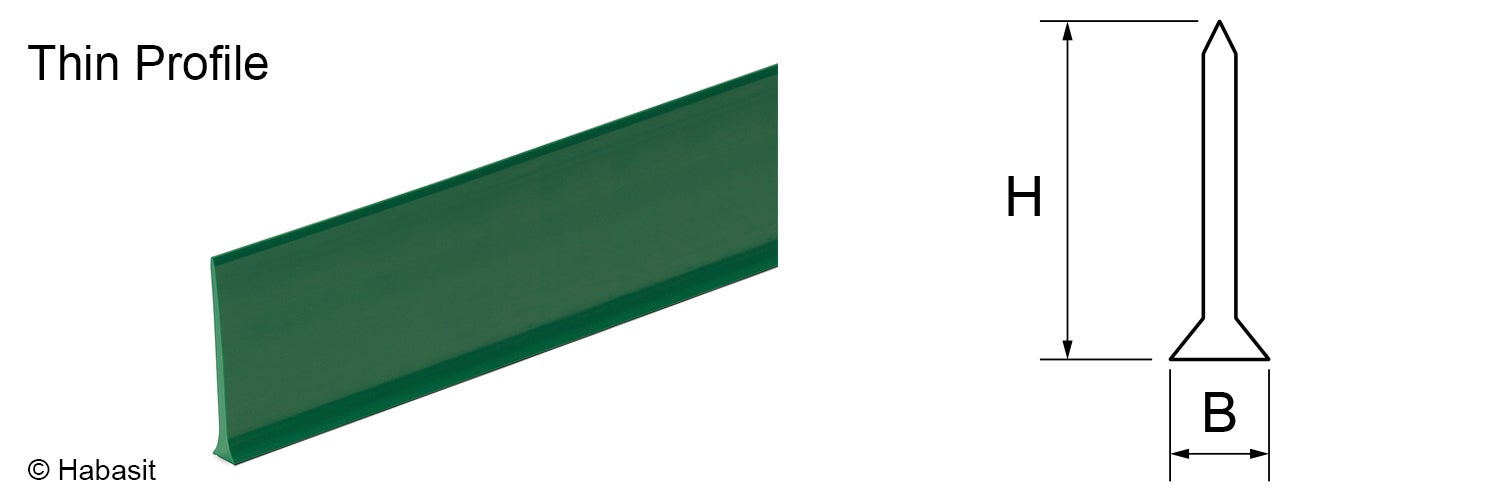

4 | BF40E & BF80E | TPU | Green/White | Yes | 1.4 | 20 | |||
|
|
4 | BF40E & BF80E | TPU | Green/White | Yes | 1.4 | 30 | |||
|
|
4 | BF80E | TPU | Green/White | Yes | 1.4 | 40 | |||
|
|
4 | BF80E | TPU | Green/White | Yes | 1.4 | 50 |
