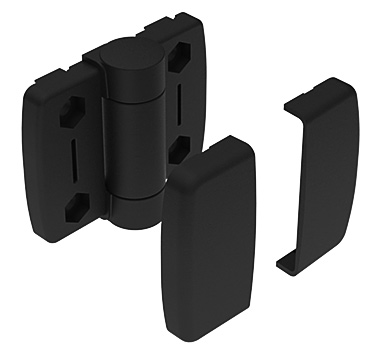

Hinge System with Catch

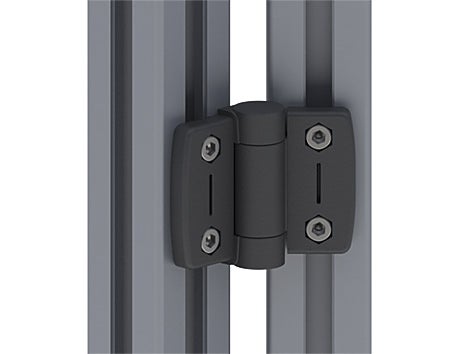

For surface elements and aluminium profiles with cap.
Catch keeps doors and flaps open at 85° or 175° or reliably shut.
Material: Housing = Plastic (PA), fibreglass reinforced; Pin = Stainless steel
On-site mount: Mount, slot 6: 4× M6 × 12 cheese head screw (DIN6912) 4× slot nut.
Colour: Black
Catch keeps doors and flaps open at 85° or 175° or reliably shut.
Material: Housing = Plastic (PA), fibreglass reinforced; Pin = Stainless steel
On-site mount: Mount, slot 6: 4× M6 × 12 cheese head screw (DIN6912) 4× slot nut.
Colour: Black
Ladda ner PDF (all data)
Generating PDF
+
Lägg till i PDF-katalog

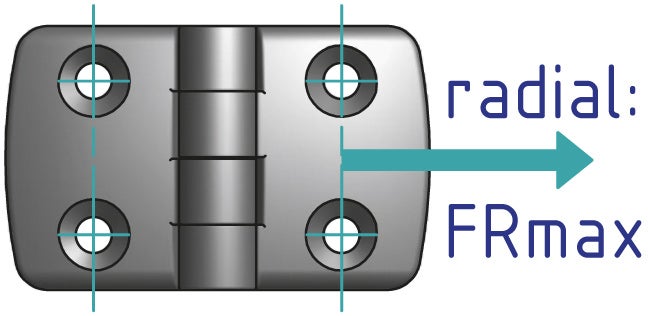

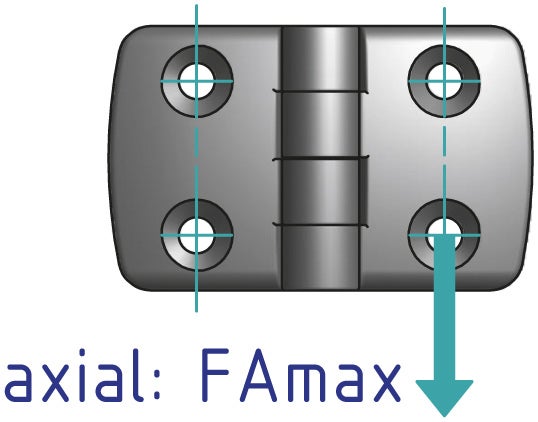

| Designation | Select all | Lead Time * | Description | FAmax (N) | FRmax (N) | Compare | |
|---|---|---|---|---|---|---|---|
|
|
2 | Hinge system 30 & 40 with catch | 350 | 400 |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
