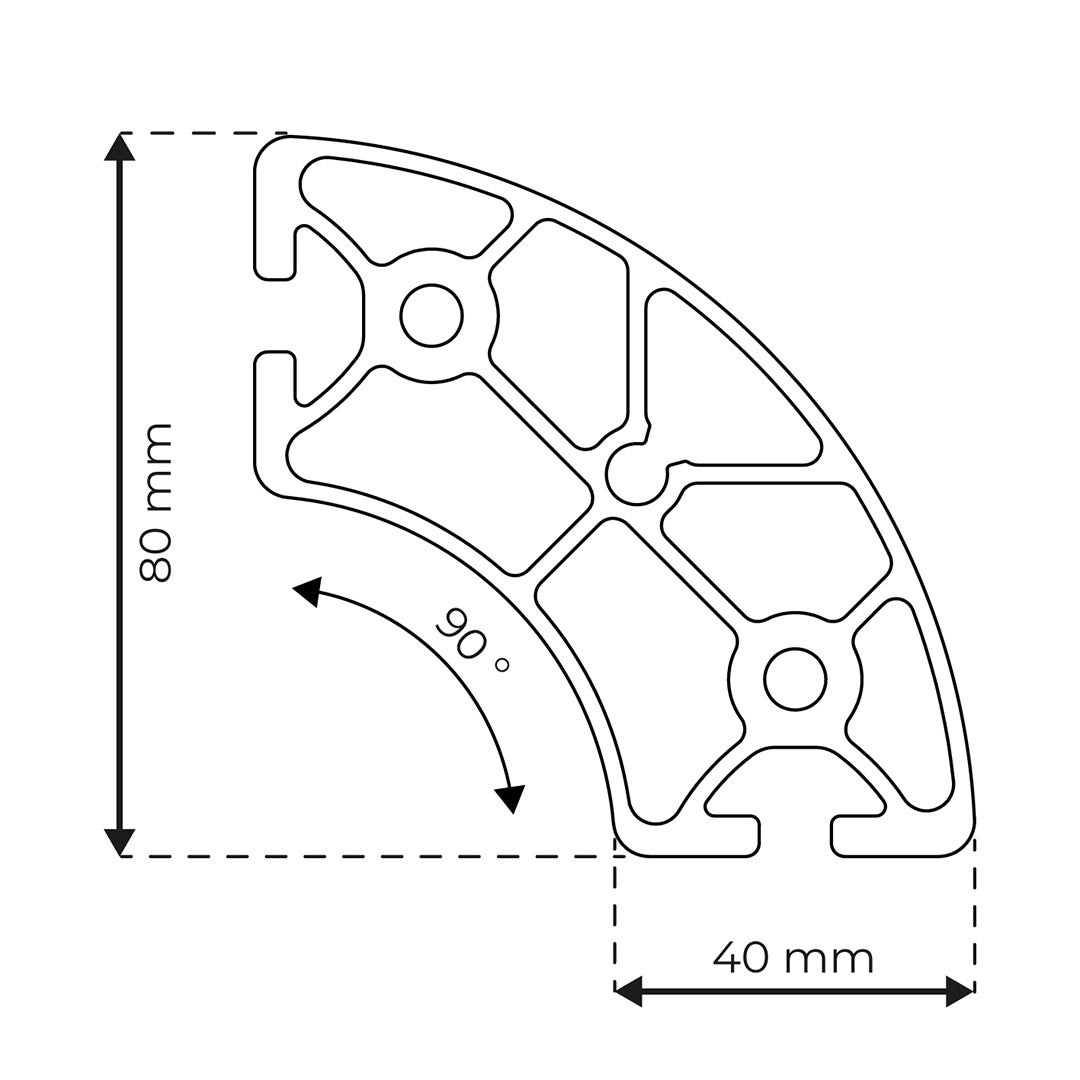

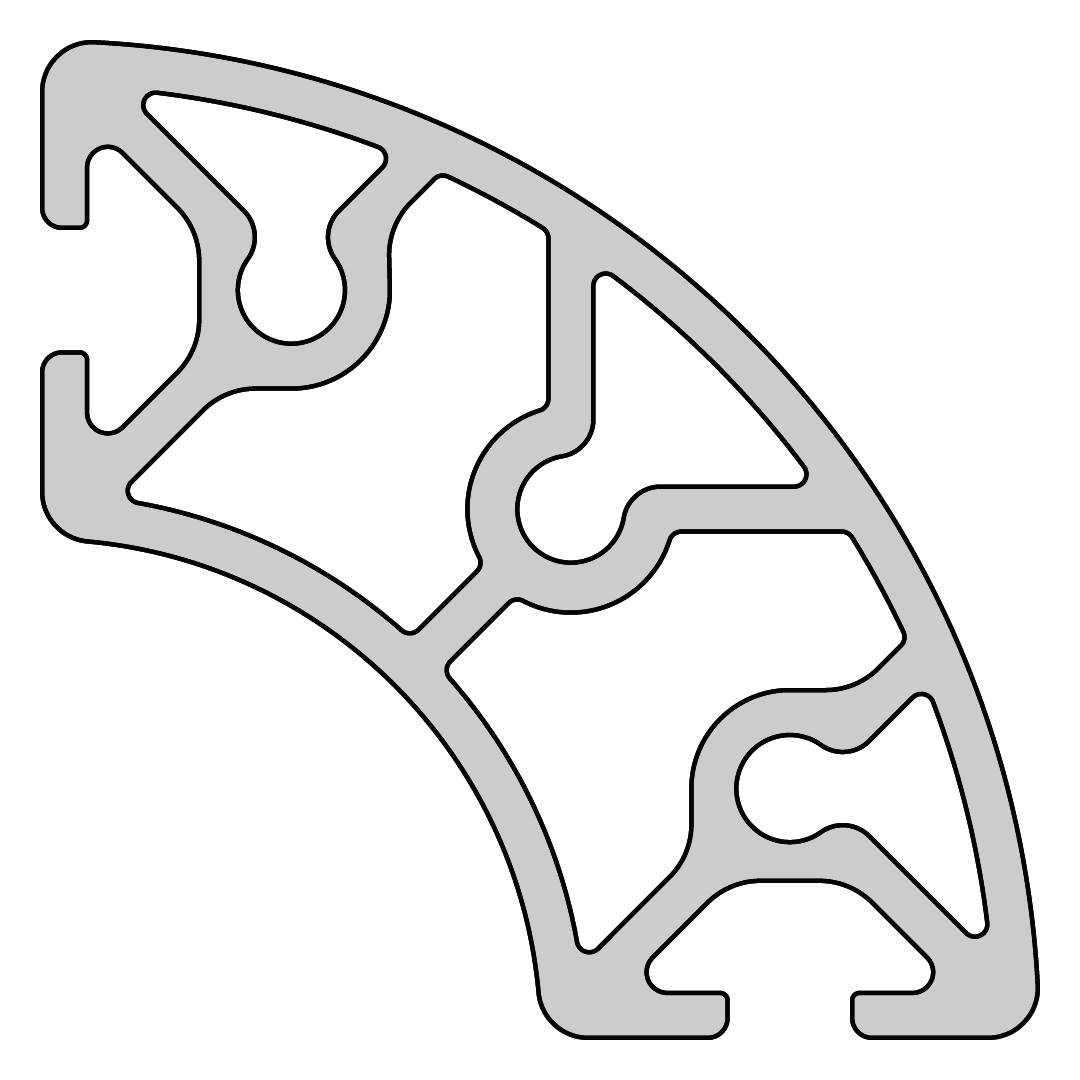

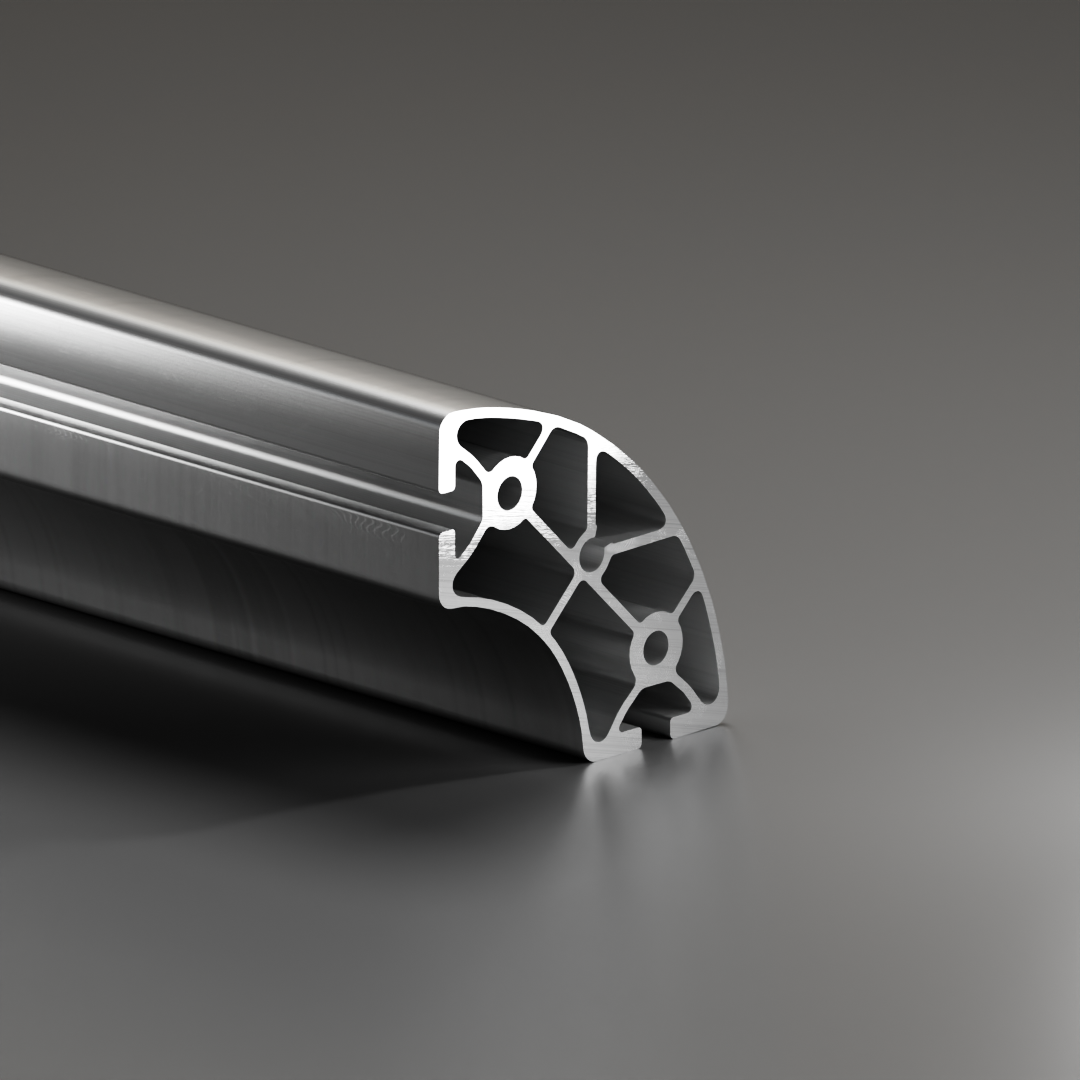

Profile 8 40x90°R Light
Product Information
System: 40 - Slot 8
Dimensions: 40x90°
Length (mm): 6000
Material Quality: Light
Profile Type: Radiused
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | Compare | Get quote | Lead Time * | System | Ix (cm⁴) | ly (cm⁴) | Wx (cm³) | Wy (cm³) | A (cm²) | Mass (kg/m) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | 40 - Slot 8 | 69.33 | 69.33 | 17.09 | 17.09 | 12.7 | 3.44 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
