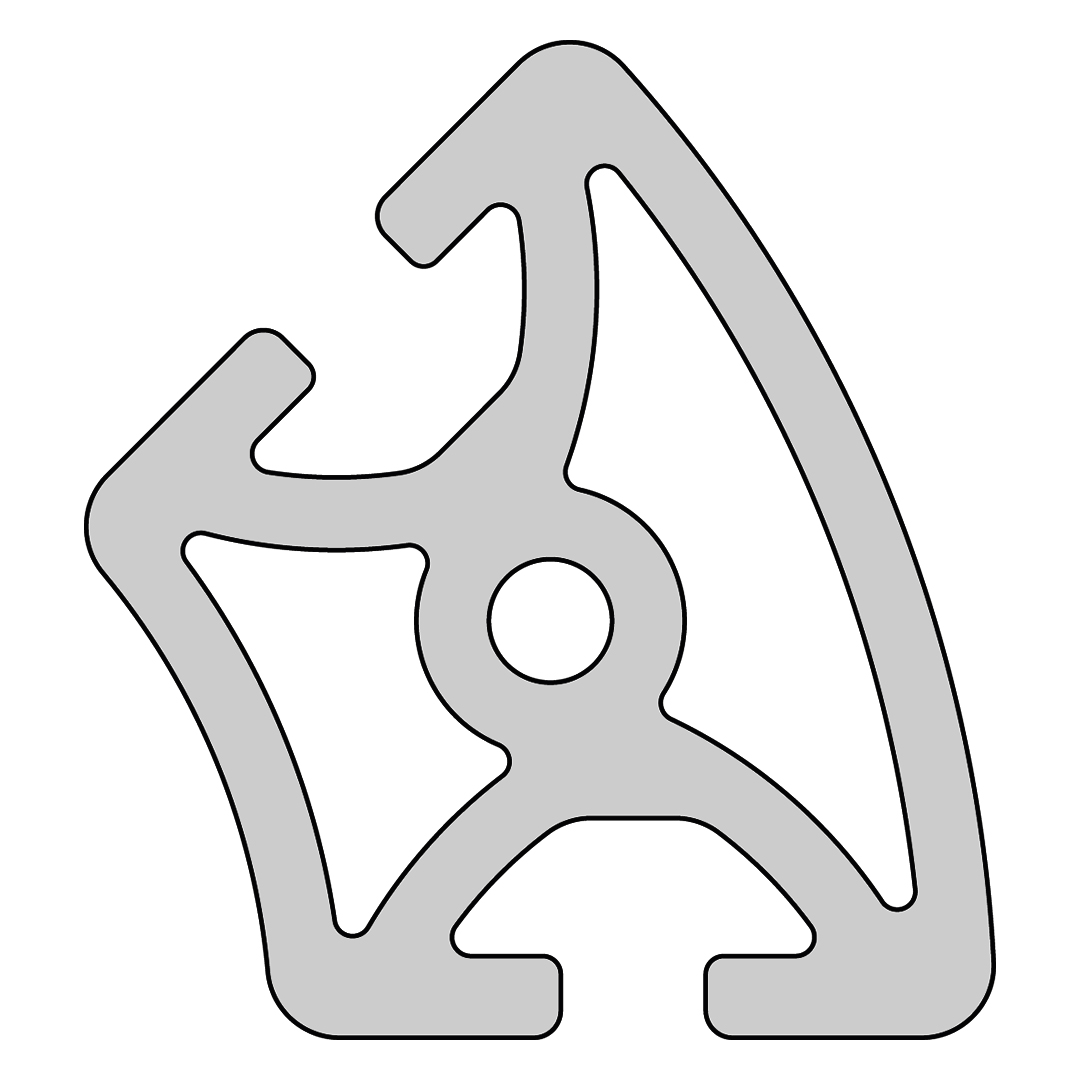

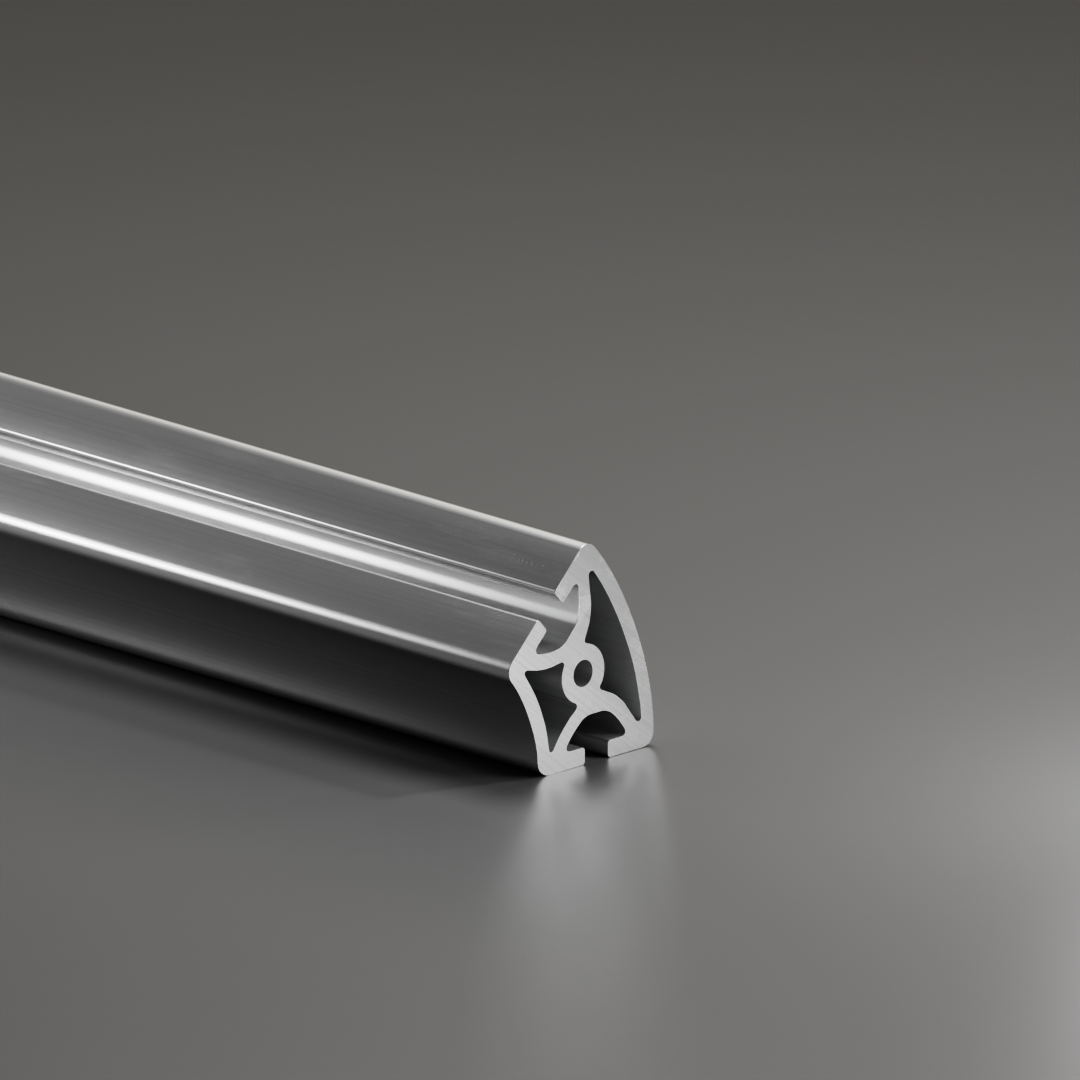

Profile 8 40x45°R Light
Product Information
System: 40 - Slot 8

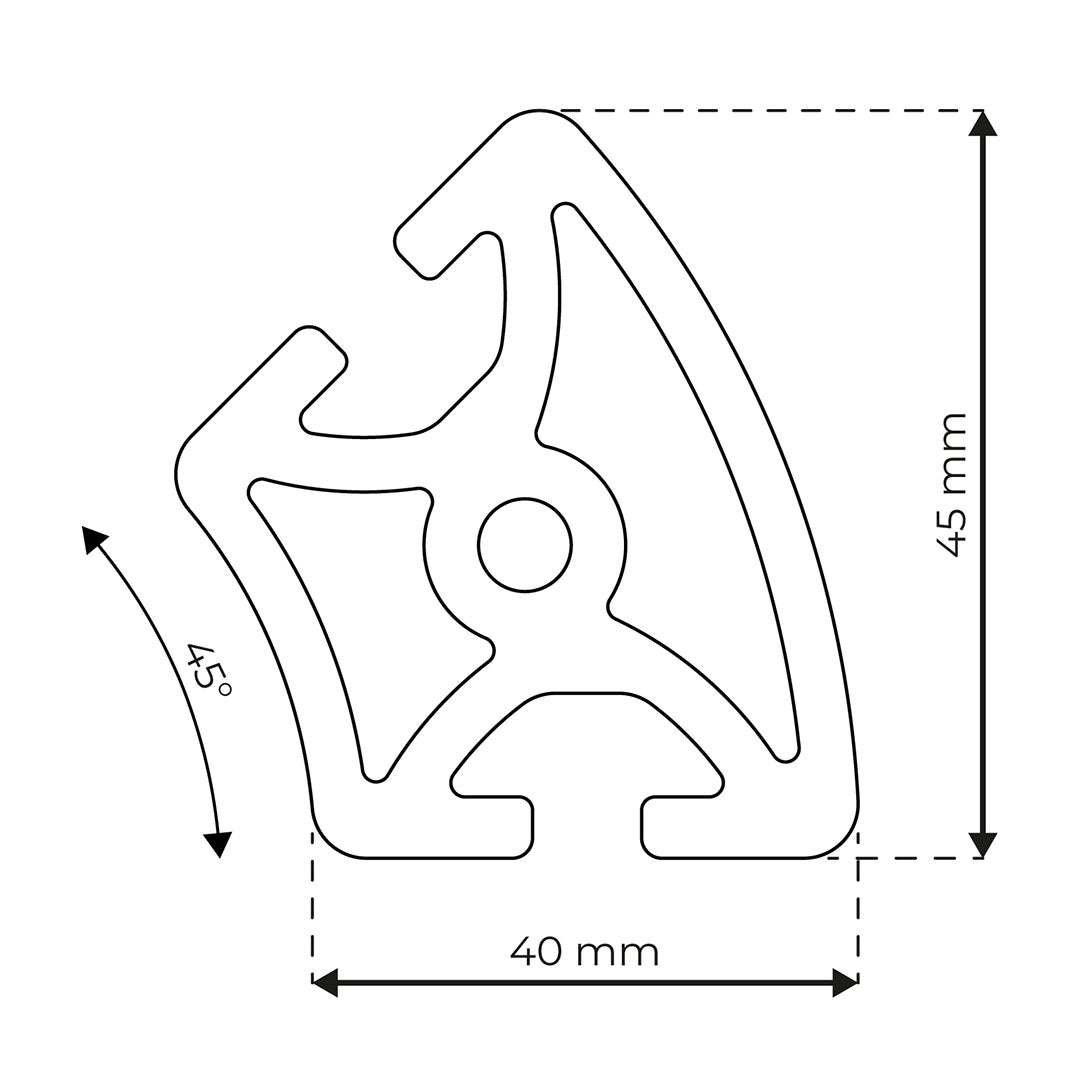

Dimensions: 40x45°
Length (mm): 6000
Material Quality: Light
Profile Type: Radiused
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | Compare | Get quote | Lead Time * | System | Ix (cm⁴) | ly (cm⁴) | Wx (cm³) | Wy (cm³) | A (cm²) | Mass (kg/m) |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | 40 - Slot 8 | 22.31 | 16.53 | 7.04 | 6.9 | 10.17 | 2.76 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
