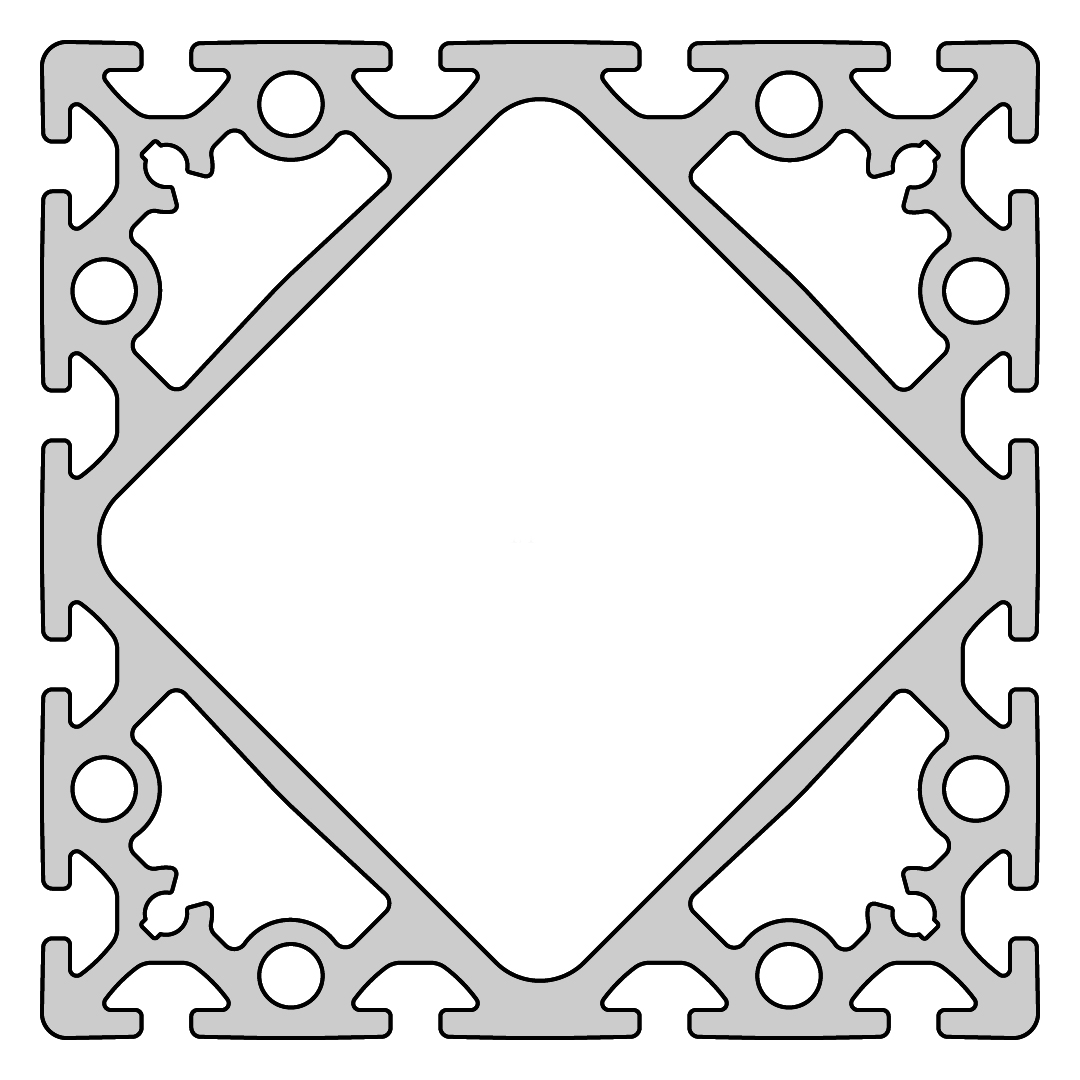

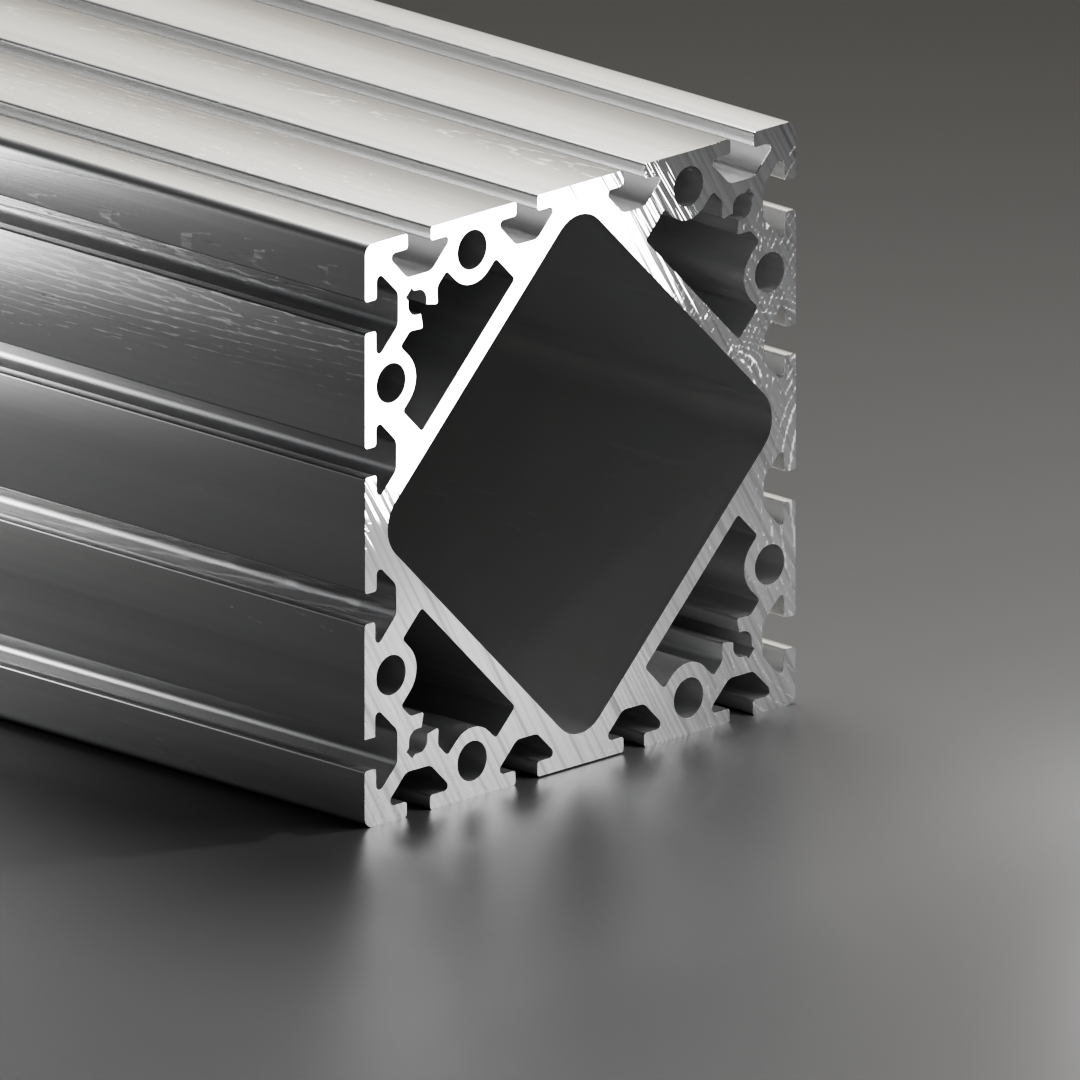

Profile 8 160x160 Light
Product Information
System: 40 - Slot 8

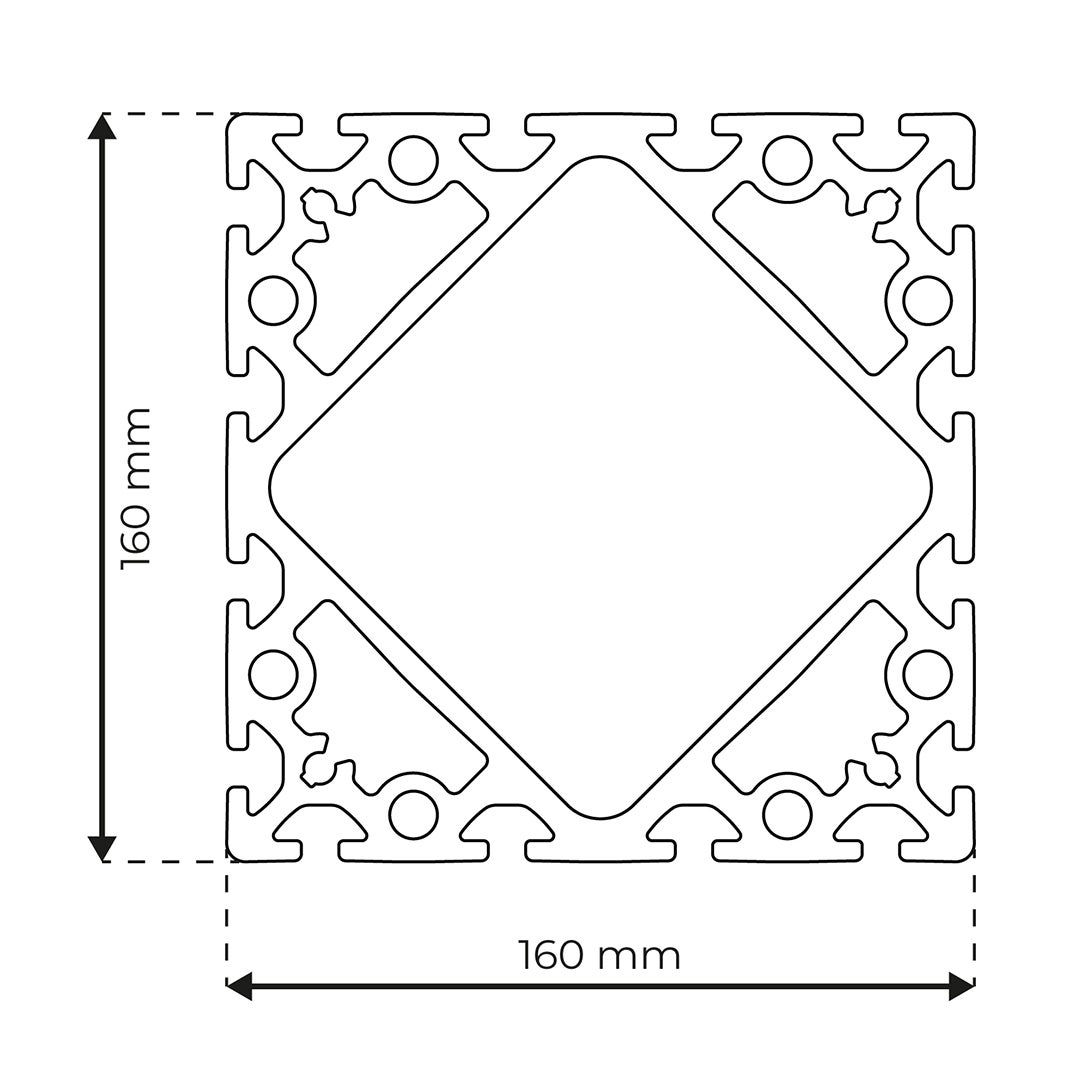

Dimensions: 160x160
Length (mm): 6000
Material Quality: Light
Profile Type: Open
Download PDF (all data)
Generating PDF
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | System | Ix (cm⁴) | ly (cm⁴) | Wx (cm³) | Wy (cm³) | A (cm²) | Mass (kg/m) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | 40 - Slot 8 | 239.38 | 239.38 | 299.22 | 299.22 | 76.73 | 20.79 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
