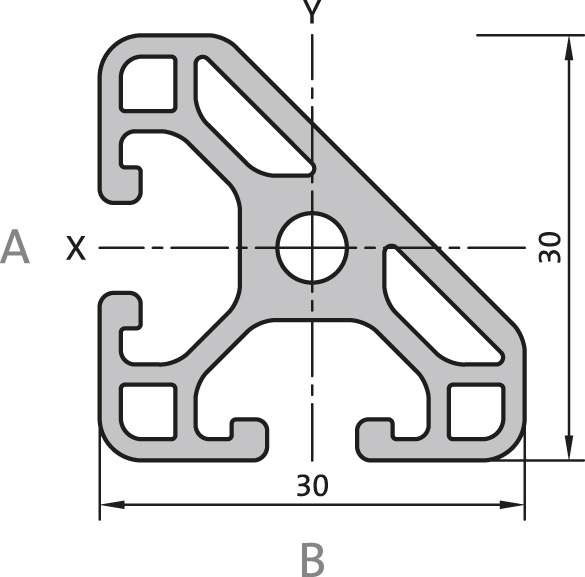

PP3150 – Profile 30x30 45° L
Ladda ner PDF (all data)
Generating PDF
+
Lägg till i PDF-katalog
| Designation | Select all | Lead Time * | Ix (cm⁴) | ly (cm⁴) | Wx (cm³) | Wy (cm³) | A (cm²) | Mass (kg/m) | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
2 | 2.2 | 2.2 | 1.32 | 1.32 | 3.05 | 0.82 |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
