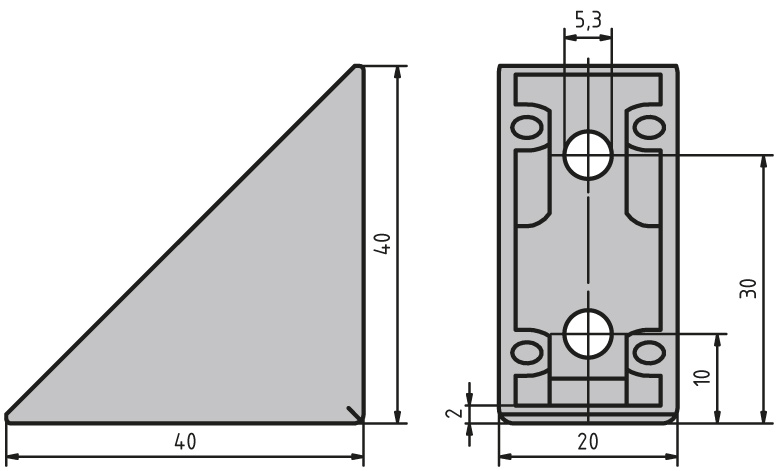

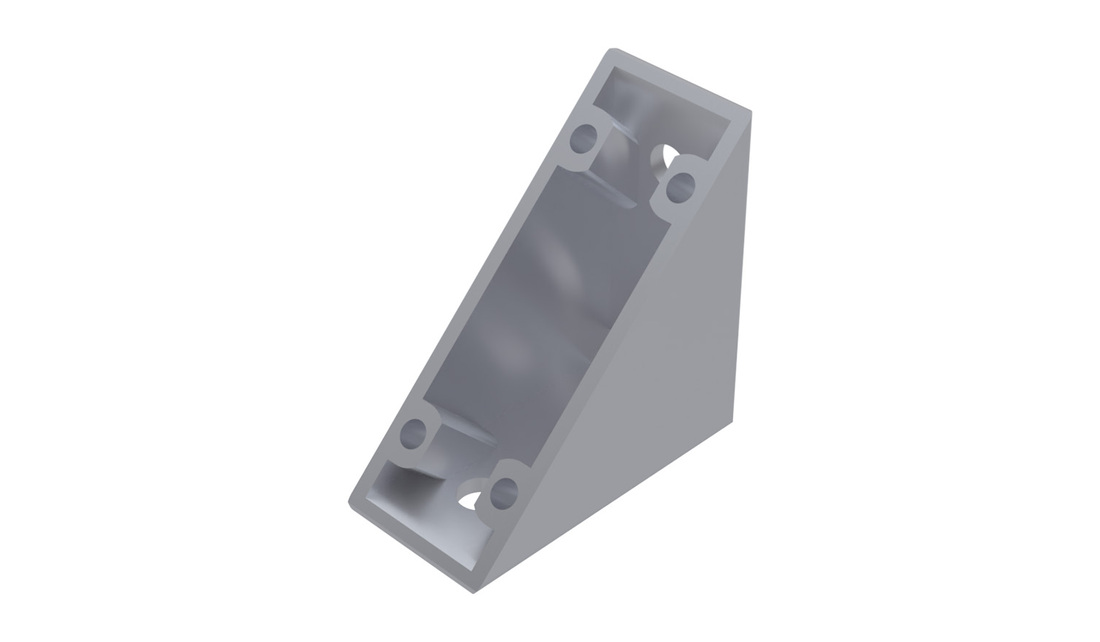

Bracket 40 × 40
Material: Bracket: Painted die-cast zinc, white aluminium (RAL9005)
Cap: Black plastic (PA)
Mounting kit: Galvanised steel
Cap: Black plastic (PA)
Mounting kit: Galvanised steel
Ladda ner PDF (all data)
Generating PDF
+
Lägg till i PDF-katalog
| Designation | Select all | Lead Time * | Description | System | ESD | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|
|
|
/storage/38A7E6914D5A93905E896CB3494ADF05E2989A8B6CB56318C6894E06A618F324/7748522bb71746f094cced071fbd8e28/stp/media/90db7f58988f4cfe99ced32a16cb057c/CAD_PZ5008_Bracket40x40_Rollco.stp | 2 | Bracket 40 × 40 painted silver white aluminium (RAL9006) | 20 - Slot 5 | - |
|
||
|
|
/storage/D2D4D3EE8A55D5CEA0D8B9598701BC6633A2B6269C719771CE22E7DA1648CECF/70b356e47098418b8027bea8173ff6b7/stp/media/35321e5a3ef8499e954cec83c3dde930/CAD_PZ5009_Bracket40x40_Rollco.stp | 2 | Bracket 40 × 40 painted silver white aluminium (RAL9006) plus mounting material and ABDK | 20 - Slot 5 | - |
|
||
|
|
2 | Cap 40 × 40 | 20 - Slot 5 | - |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
