Alignment Fixture

Used during installation of joined rails for precise alignment of the rail transition from one to another.

Alignment fixture AT for joined T-and U-rails. Alignment fixture AK for K-rails.

Dimensions in mm.

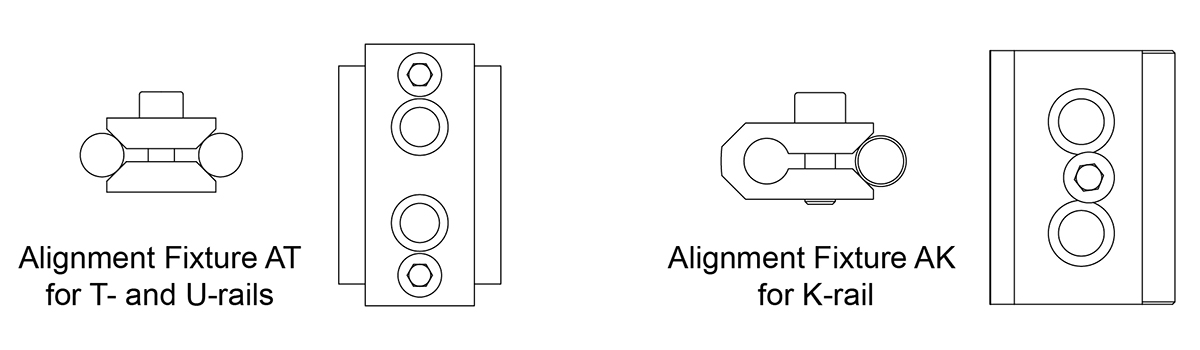

Technical Drawing
Designation Lead Time * Size Compatible with
2 18 T- and U-rails
2 28 T- and U-rails
2 43 T- and U-rails
2 43 T- and U-rails
2 63 T- and U-rails
2 63 K-rail

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.
