Rollers CPN-CPA
Available individually in all sizes as eccentric or concentric rollers. Optionally available with splash-proof plastic seal or with steel cover disc.

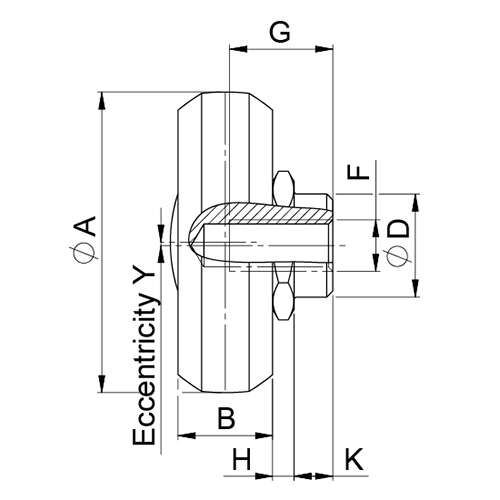

Prismatic (T and U rail)
CPN: Concentric roller
CPA: Eccentric roller
Dimensions in mm.
Prismatic (T and U rail)
CPN: Concentric roller
CPA: Eccentric roller
Dimensions in mm.
| Designation | Lead Time * |
|---|---|
|
|
1 |
|
|
1 |
|
|
1 |
|
|
1 |
|
|
1 |
|
|
1 |
|
|
1 |
|
|
1 |
|
|
1 |
|
|
1 |
|
|
1 |
|
|
1 |
|
|
1 |
|
|
1 |
* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.
| Designation | A | B | D | F | G | H | K | Y |
|---|---|---|---|---|---|---|---|---|
|
|
14 | 4 | 6 | M4 | 5,50 | 1,55 | 1,80 | - |
|
|
14 | 4 | 6 | M4 | 5,50 | 1,55 | 1,80 | - |
|
|
14 | 4 | 6 | M4 | 5,50 | 1,55 | 1,80 | 0,40 |
|
|
14 | 4 | 6 | M4 | 5,50 | 1,55 | 1,80 | 0,40 |
|
|
23,20 | 7 | 10 | M5 | 7 | 2,20 | 3,80 | - |
|
|
23,20 | 7 | 10 | M5 | 7 | 2,20 | 3,80 | - |
|
|
23,20 | 7 | 10 | M5 | 7 | 2,20 | 3,80 | 0,60 |
|
|
23,20 | 7 | 10 | M5 | 7 | 2,20 | 3,80 | 0,60 |
|
|
35 | 11 | 12 | M6 | 12 | 2,50 | 4,50 | - |
|
|
35 | 11 | 12 | M6 | 12 | 2,50 | 4,50 | - |
|
|
35 | 11 | 12 | M6 | 12 | 2,50 | 4,50 | 0,80 |
|
|
35 | 11 | 12 | M6 | 12 | 2,50 | 4,50 | 0,80 |
|
|
50 | 17,50 | 18 | M8 | 16 | 2,30 | 6 | - |
|
|
50 | 17,50 | 18 | M10 | 16 | 2,30 | 6 | 1,20 |
| Designation | Dynamic Load Capacity C | Max. Permissible Radial Load Fmax | Weight |
|---|---|---|---|
|
|
765 N | 410 N | 0,004 kg |
|
|
765 N | 410 N | 0,004 kg |
|
|
765 N | 410 N | 0,004 kg |
|
|
765 N | 410 N | 0,004 kg |
|
|
2130 N | 1085 N | 0,019 kg |
|
|
2130 N | 1085 N | 0,019 kg |
|
|
2130 N | 1085 N | 0,019 kg |
|
|
2130 N | 1085 N | 0,019 kg |
|
|
6140 N | 2750 N | 0,06 kg |
|
|
6140 N | 2750 N | 0,06 kg |
|
|
6140 N | 2750 N | 0,06 kg |
|
|
6140 N | 2750 N | 0,06 kg |
|
|
15375 N | 6250 N | 0,19 kg |
|
|
15375 N | 6250 N | 0,19 kg |
